Same model may have multiple batches, images only for reference.

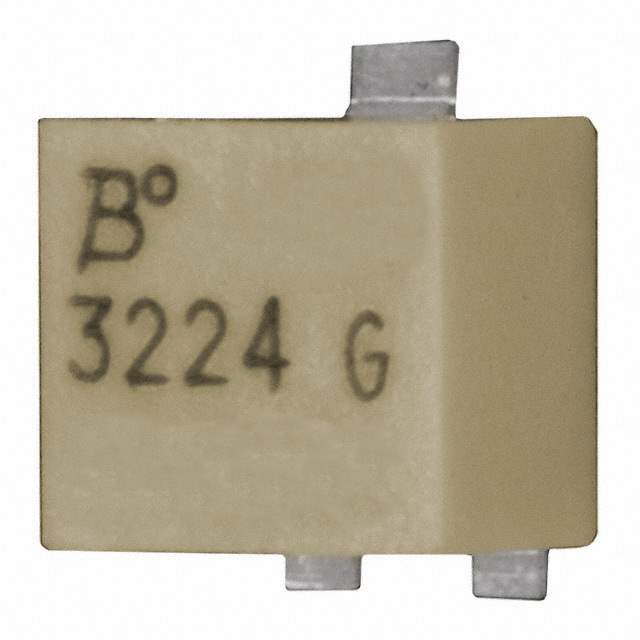

3224G-1-101E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-101E

Part No 3224G-1-101E
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 100 OHM 0.25W GW SIDE / 100 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3224G-1-101E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3224 - Sealed
Package Tape & Reel
Resistance 100 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm)
Base Product Number 3224G
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3224G-1-101EDKR,3224G1101E,3224G-1-101ECT,3224G-1-101ETR
Standard Package 500
Win Source Part Number 1144939-3224G-1-101E
Ultra Librarian 3D Model Ultra Librarian 3224G-1-101E CAD Model

Description

Bourns Inc. presents a trimmer potentiometer, part number 1144939-3224G-1-101E, which is a variable resistor with a resistance of 100 Ohms and a tolerance of ±10%.

  • Type: Trimmer Potentiometer, Variable Resistor
  • Resistance: 100 Ohms
  • Tolerance: ±10%
  • Dimension: 0.181" x 0.138" face (4.60mm x 3.50mm)
  • Resistive Material: Cermet
  • Power Rating: 0.25W
  • Turns: 12
  • Adjustment Type: Side Adjustment
  • Mounting: Surface Mount
  • Packaging: Tape and Reel
  • Series: Trimpot® 3224 - Sealed
  • Popularity: Medium
