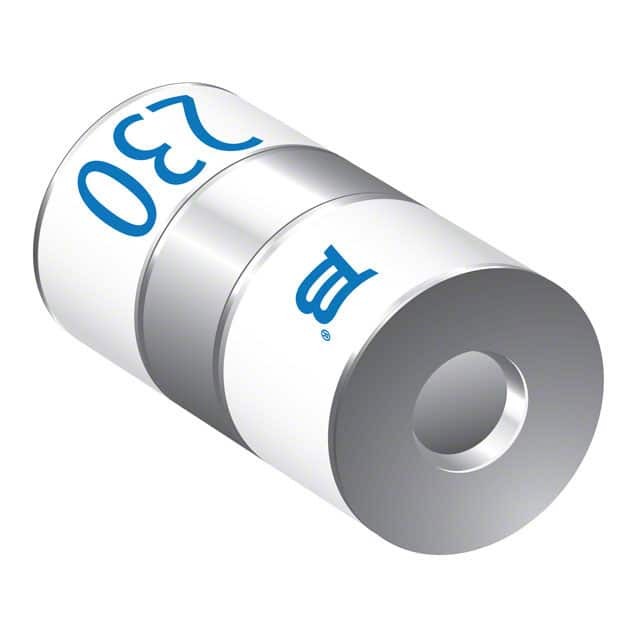

Same model may have multiple batches, images only for reference.
2056-20-ALF
Same model may have multiple batches, images only for reference.

2056-20-ALF

Part No 2056-20-ALF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 200V 5KA 3 POLE
Datasheet
2056-20-ALF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series 2056
Package Tray
Product Status Active
Voltage - DC Spark Over (Nom) 200 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Type User Defined
Package / Case Cylinder No Lead, 3 Terminal
Base Product Number 2056
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 846504-2056-20-ALF
Ultra Librarian 3D Model Ultra Librarian 2056-20-ALF CAD Model

Description

The 846504-2056-20-ALF is a gas discharge tube arrester (GDT) from Bourns Inc.

  • Series: 2056
  • Voltage DC Spark Over: 200 V
  • Tolerance: ±20%
  • Number of Poles: 3
  • Fail Short: No
  • Impulse Discharge Current: 5000A (5kA)
  • Mounting Type: User Defined
  • Package/Case: Cylinder with No Lead, 3 Terminals
  • ECCN: EAR99
  • REACH: Unaffected
  • Prop 65 Warning: Yes
