Same model may have multiple batches, images only for reference.

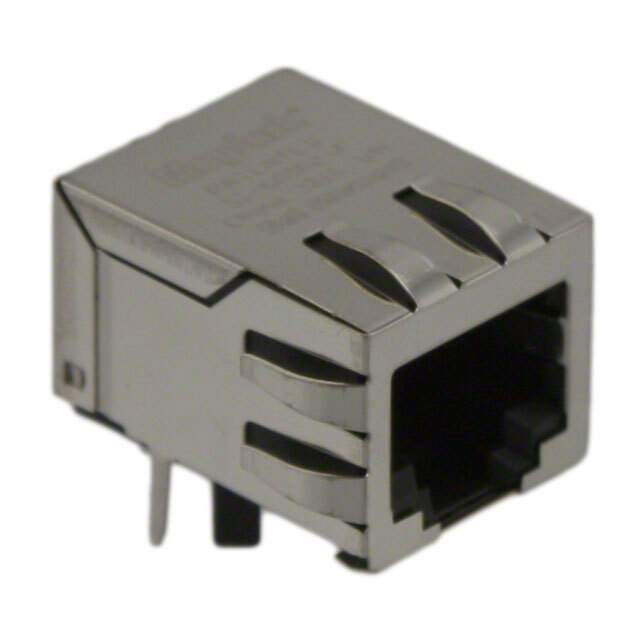

SI-60002-F Real Image
Same model may have multiple batches, images only for reference.

SI-60002-F

Part No SI-60002-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
SI-60002-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Bel Fuse Inc.
Series MagJack® ST SI-60000
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 380-1105,380-1105-ND,SI60002F,507-SI-60002-F
Standard Package 50
Win Source Part Number 1092917-SI-60002-F
Ultra Librarian 3D Model Ultra Librarian SI-60002-F CAD Model

Description

The Bel Fuse Inc. SI-60002-F is a shielded RJ45 connector.

  • Port: Single
  • Angle: 90° angle (right)
  • Applications: 10/100 Base-T and AutoMDIX
  • Mounting: Through hole
  • Standard Package: 50
  • Contact Material: Copper alloy
  • Contact Finish: Gold @ 50.0µin (1.27µm) thickness
  • Housing Material: Thermoplastic
  • Shielding: EMI finger shielding
  • REACH: Unaffected
