S558-5999-G9-F Bel Fuse Inc.

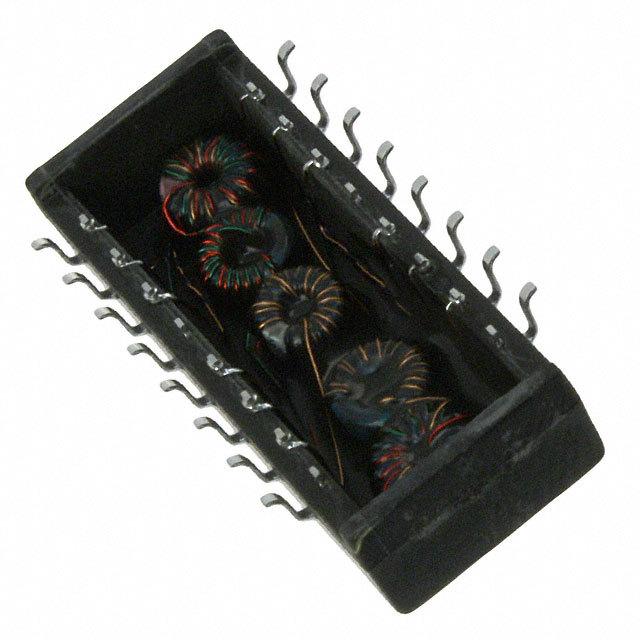

Same model may have multiple batches, images only for reference.

S558-5999-G9-F

Part No S558-5999-G9-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10/100B-TX SMD / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1.414CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-G9-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.235" (5.97mm)
Standard Package 300 pcs
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 307367-S558-5999-G9-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-G9-F CAD Model

Description

The Bel Fuse Inc. S558-5999-G9-F is a pulse transformer designed for LAN 10/100 Base-T applications.

  • Component: Pulse Transformer
  • Application: LAN 10/100 Base-T
  • Manufacturer: Bel Fuse Inc.
  • Package: Tape & Reel
  • Standard Package: 300 pcs
  • Size: 1.000" L x 0.390" W (25.40mm x 9.91mm)
  • Inductance: 350µH
  • Height (Seated): 0.235" (5.97mm)
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
  • Status: Obsolete
  • MSL: 2 (1 Year)
