Same model may have multiple batches, images only for reference.

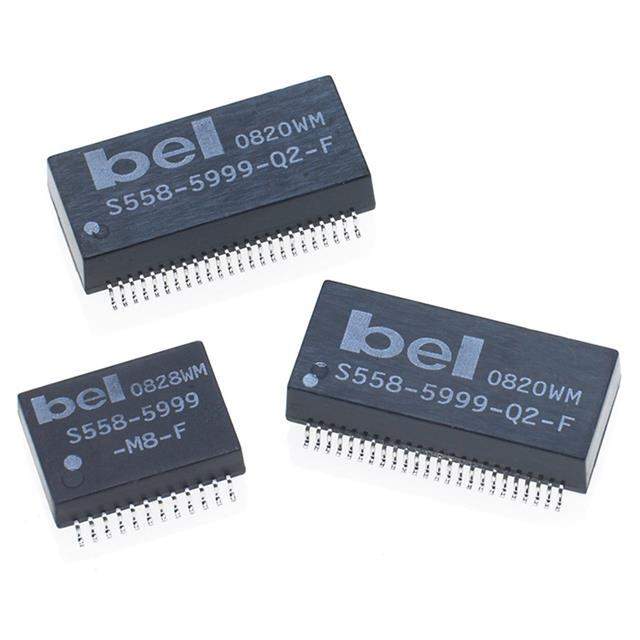

S558-10GB-15 Real Image
Same model may have multiple batches, images only for reference.

S558-10GB-15

Part No S558-10GB-15
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description TRANSFORMER PULSE / 120µH LAN 10G Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-10GB-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tube
Transformer Type LAN 10G Base-T
Inductance 120µH
Mounting SMD (SMT)
Height - Seated (Max) 0.290" (7.37mm)
Other Names R558-10GB-15
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232767-S558-10GB-15
Ultra Librarian 3D Model Ultra Librarian S558-10GB-15 CAD Model

Description

The 1232767-S558-10GB-15 pulse transformer from Bel Fuse Inc. is a LAN 10G Base-T transformer with an inductance of 120µH.

  • Type: LAN 10G Base-T transformer
  • Inductance: 120µH
  • Height: 0.290 inches (7.37mm)
  • Package: Tube
  • Mounting: Surface-mountable
  • Standard Package: 300
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8504.31
  • RoHS: RoHS compliant
  • Supply and Demand: Limited supply and demand status
