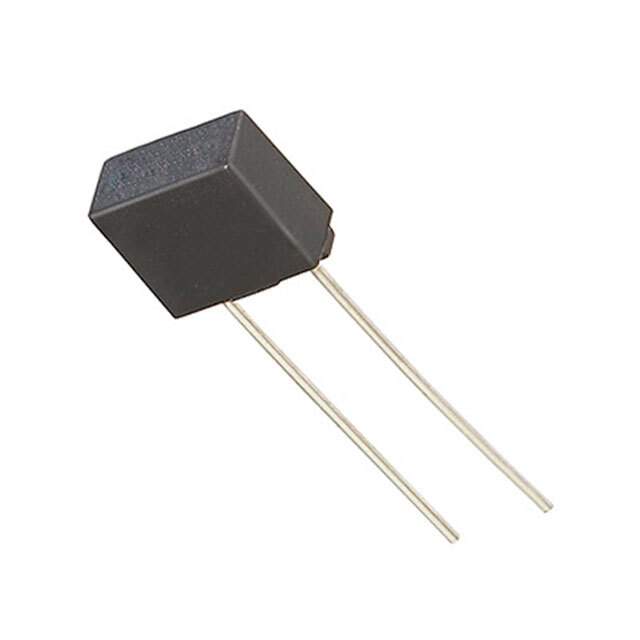

0698Q1500-02 Real Image
Same model may have multiple batches, images only for reference.

0698Q1500-02

Part No 0698Q1500-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE 1.5A 350V RADIAL / 1.5 A 350 V AC 140 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Datasheet
0698Q1500-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 0698Q
Package Cut Tape (CT),Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.5 A
Voltage Rating - AC 350 V
Voltage Rating - DC 140 V
Response Time Fast Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 100A AC, 150A DC
Melting I2t 0.64
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.329" L x 0.157" W x 0.303" H (8.35mm x 4.00mm x 7.70mm)
DC Cold Resistance 0.057 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0698Q150002,507-1849-1,507-1849-3
Standard Package 1,000
Win Source Part Number 1086526-0698Q1500-02
Ultra Librarian 3D Model Ultra Librarian 0698Q1500-02 CAD Model

Description

The Bel Fuse Inc. 0698Q1500-02 is a fast-blow board mount fuse manufactured by.

  • Voltage Rating: 350 VAC and 140 VDC
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 100A AC and 150A DC
  • Melting I2t: 0.64
  • DC Cold Resistance: 0.057 Ohms
  • Mounting: Through Hole
  • Packaging: Radial, Box
  • Operating Temperature Range: -55°C to 125°C
  • Dimension: 0.329" L x 0.157" W x 0.303" H (8.35mm x 4.00mm x 7.70mm)
  • Approvals: AEC-Q200, CE, cURus
  • HTSUS Code: 8536.10.0040
  • REACH: Unaffected
