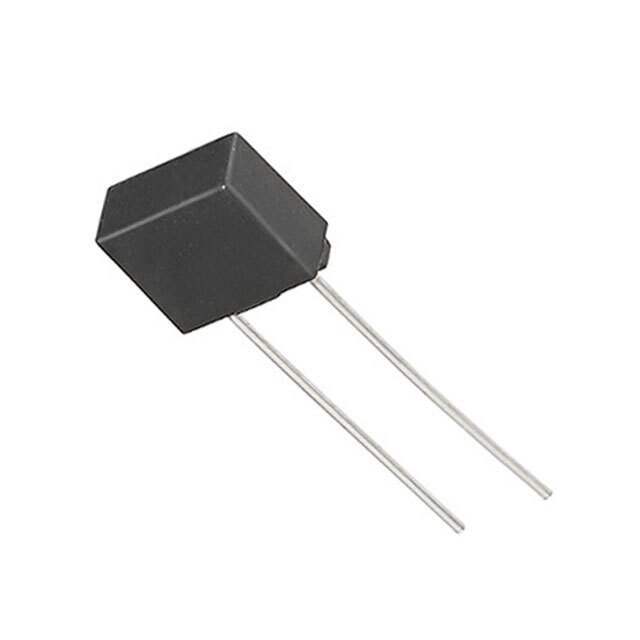

0697H9100-02 Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

0697H9100-02

Part No 0697H9100-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 10A 350VAC 72VDC RAD
Datasheet
0697H9100-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection> Fuses
Mfr Bel Fuse Inc.
Packaging Cut Tape (CT) Tape & Box (TB)
Part Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - AC 350 V
Voltage Rating - DC 72 V
Response Time Slow Blow
Ultra Librarian 3D Model Ultra Librarian 0697H9100-02 CAD Model

Description

Subminiature, radial lead, High I2 t, time-lag design, rated 350VAC, 72 DC, up to 20A, Approved and complied with UL 248-14.
