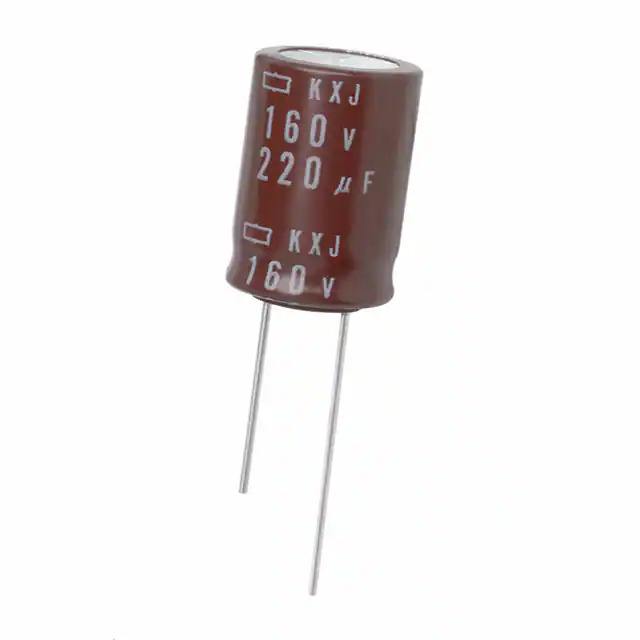

Same model may have multiple batches, images only for reference.
EKXJ451ELL680MU40S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKXJ451ELL680MU40S

Part No EKXJ451ELL680MU40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 450V RADIAL / 68 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KXJ
Package Bulk
Product Status Active
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 660 mA @ 120 Hz
Ripple Current @ High Frequency 1.65 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.571" Dia (14.50mm)
Height - Seated (Max) 1.634" (41.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358199-EKXJ451ELL680MU40S
Ultra Librarian 3D Model Ultra Librarian EKXJ451ELL680MU40S CAD Model

Description

The KXJ series capacitor by United Chemi-Con is a reliable aluminum electrolytic capacitor designed for automotive applications. With a capacitance of 68 μF and a voltage rating of 450 V, this capacitor is suitable for a wide range of automotive electronic circuits.

  • Capacitance: 68 μF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Lifetime: 12000 hours @ a maximum operating temperature of 105°C
  • Package: Radial, can
  • Mounting Type: Through hole
  • Ripple Current (Low Frequency): 660 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.65 A @ 100 kHz
  • Diameter: 0.571" (14.50mm)
  • Height: 1.634" (41.50mm)
