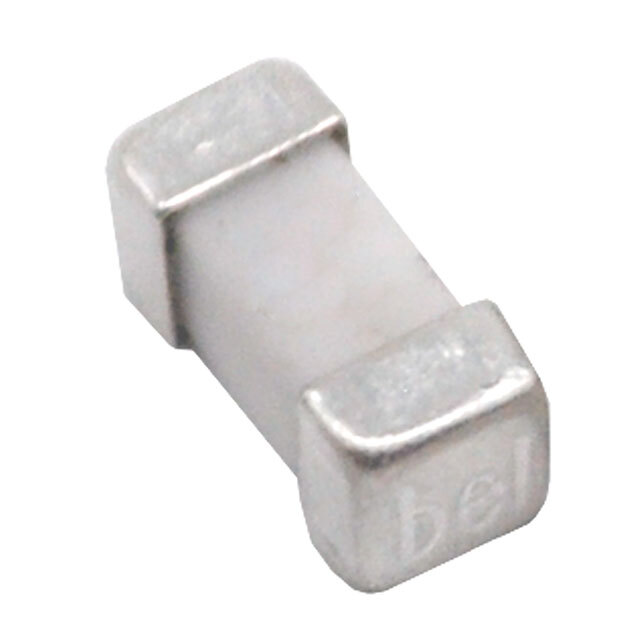

Same model may have multiple batches, images only for reference.
0680L5000-05 Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0680L5000-05

Part No 0680L5000-05
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 125VAC/VDC 2SMD
Datasheet
0680L5000-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Bel Fuse Inc.
Series 0680L
Part Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 100A DC
Melting I2t 37.0
Approval Agency AEC-Q200, CE, cURus
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
DC Cold Resistance 0.019 Ohms
Ultra Librarian 3D Model Ultra Librarian 0680L5000-05 CAD Model
