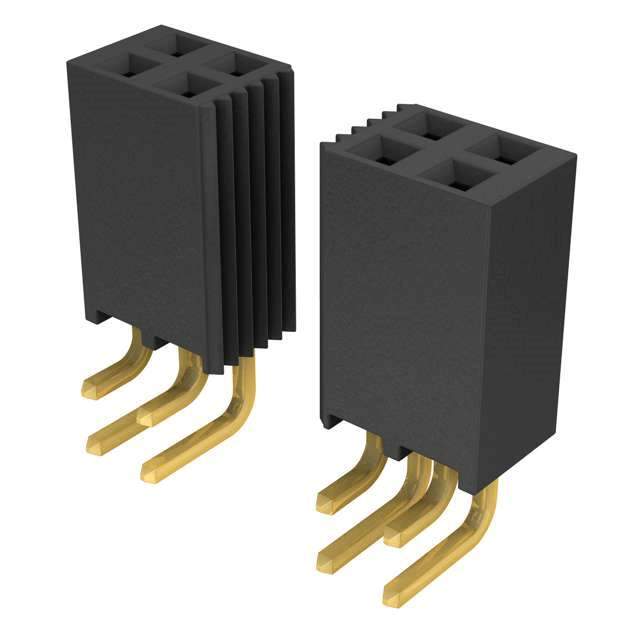

The Samtec Inc. SSQ series SSQ-116-02-S-D-RA is a rectangular connector with headers, receptacles, and female sockets.

• Positions: 32
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Phosphor Bronze
• Voltage Rating: 465VAC and 655VDC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Material Flammability Rating: UL94 V-0
• Style: Board to Board or Cable
• Pitch: 0.100" (2.54mm)
• Contact Finish (Mating): Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Contact Finish (Post): Tin
• Insulation Color: Black
• Mounting Type: Through Hole, Right Angle
• Row Spacing for Mating: 0.100" (2.54mm)
• Contact Length of Post: 0.100" (2.54mm)
• Insulation Height: 0.195" (4.95mm)
• Contact Shape: Square
• Temperature Range for Operating: -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.4040
• Base Product Number: SSQ-116
