Same model may have multiple batches, images only for reference.

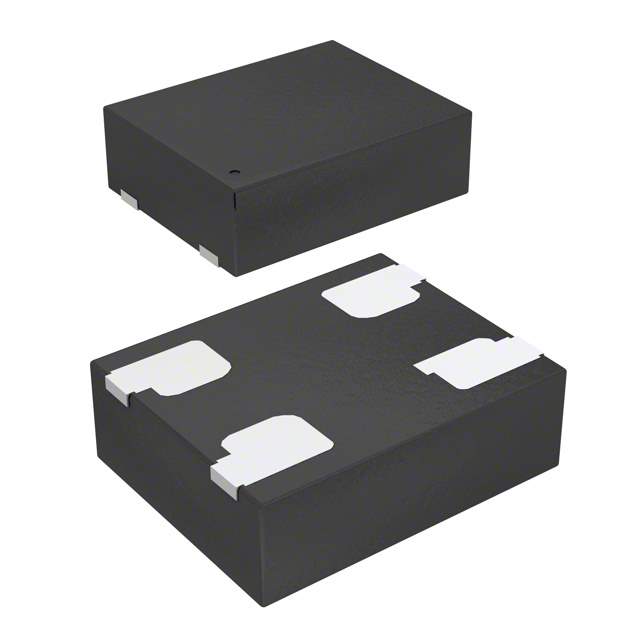

SIT9003AC-14-18DO-75.00000T Real Image
Same model may have multiple batches, images only for reference.

SIT9003AC-14-18DO-75.00000T

Part No SIT9003AC-14-18DO-75.00000T
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 75.0000MHZ LVCMOS LV / 75 MHz XO (Standard) LVCMOS, LVTTL Oscillator 1.8V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9003
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 75 MHz
Output LVCMOS, LVTTL
Voltage - Supply 1.8V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Spread Spectrum Bandwidth -0.50%, Down Spread
Current - Supply (Max) 3.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 0.8µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SIT9003AC-14-18DO-75.00000T-ND,1473-SIT9003AC-14-18DO-75.00000TTR
Standard Package 3,000
Win Source Part Number 1093198-SIT9003AC-14-18DO-75.00000T
Ultra Librarian 3D Model Ultra Librarian SIT9003AC-14-18DO-75.00000T CAD Model

Description

The SiT9003AC-14-18DO-75.00000T is a 75MHz XO (Standard) oscillator that comes with LVCMOS and LVTTL output.

  • Frequency: 75MHz
  • Output: LVCMOS and LVTTL
  • Frequency Stability: ±100ppm
  • Maximum Supply Current: 3.5mA
  • Disable Current: 0.8µA
  • Spread Spectrum Bandwidth: -0.50%, Down Spread
  • Voltage Supply: 1.8V
  • Operating Temperature: -20°C to 70°C
  • Package: 4-SMD, No Lead
  • Height: 0.031" (0.80mm)
  • REACH: Unaffected
