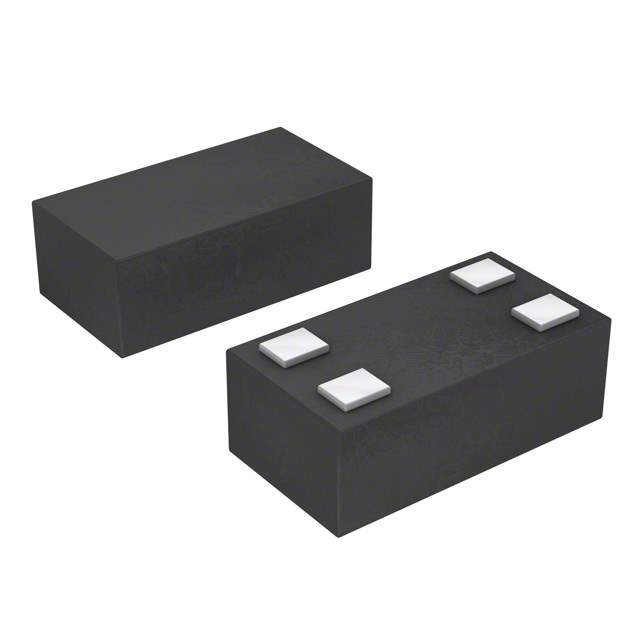

CP0603A1960BWTR Real Image
Same model may have multiple batches, images only for reference.

CP0603A1960BWTR

Part No CP0603A1960BWTR
Manufacturer AVX Corporation
Catalog RF Directional Coupler
Description DIRECTIONAL COUPLER 1960MHZ 0603
Datasheet
CP0603A1960BWTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.93GHz to 1.99GHz
Coupling Factor 9 ± 1dB
Applications PCS
Insertion Loss 0.8dB
Maximum Power Dissipation 3W
Isolation -24dB
Return Loss -21dB
Case / Package 0603
Win Source Part Number 202718-CP0603A1960BWTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CP0603A1960BWTR CAD Model

Description

CP0603A1960BWTR

The CP0603A1960BWTR sets a benchmark in electronic component design, offering superior frequency control capabilities.

Applications

  • Networking equipment
  • Broadcast systems
  • Robotics
  • Aerospace technology

Features and Benefits

  • Superior Stability: Ensures dependable modulation and frequency stability.
  • Energy Efficient: Designed for low power consumption without compromising performance.
  • Versatile Usage: Suitable for a wide range of electronic applications.

Choose the CP0603A1960BWTR for projects requiring top-tier frequency control and long-term reliability.
