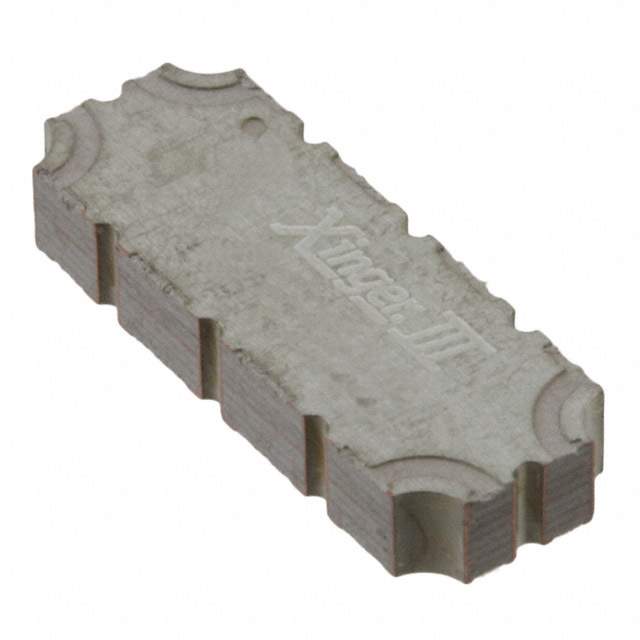

X3C19E2-20S Real Image
Same model may have multiple batches, images only for reference.

X3C19E2-20S

Part No X3C19E2-20S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 1700-2000MHZ 20DB
Datasheet
X3C19E2-20S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.4GHz to 2.7GHz
Coupling Factor 20.3dB
Applications DCS, PCS, WCDMA
Insertion Loss 0.1dB
Maximum Power Dissipation 225W
Return Loss 24.9dB
Case / Package SMD
Win Source Part Number 043757-X3C19E2-20S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian X3C19E2-20S CAD Model

Description

The Anaren 043757-X3C19E2-20S is an active electronic component that belongs to the RF/IF and RFID category.

  • Application: Designed for DCS, PCS, and WCDMA applications.
  • Frequency Range: 1.4GHz to 2.7GHz
  • Coupling Factor: 20.3dB
  • Insertion Loss: 0.1dB
  • Return Loss: 24.9dB
  • Supply and Demand Status: Balanced
  • Packaging: Reel - TR
  • Quantity per Package: 2k pcs
