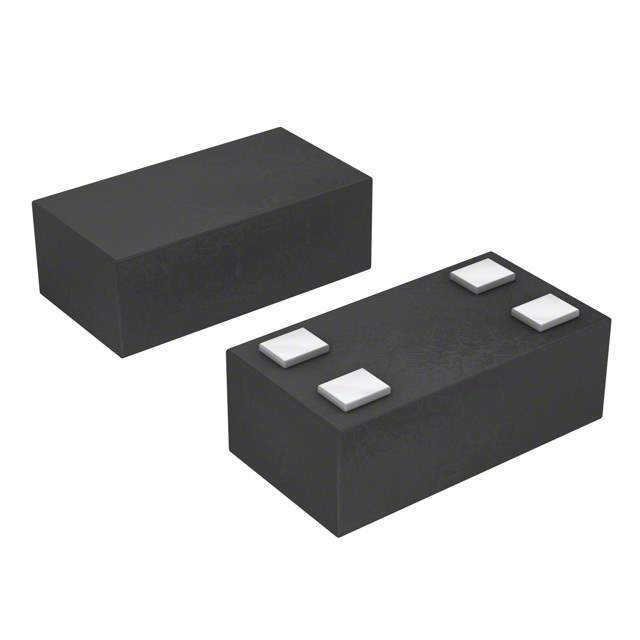

CP0603A0836CLTR

Part No CP0603A0836CLTR
Manufacturer AVX Corporation
Catalog RF Directional Coupler
Description DIRECTIONAL COUPLER 836MHZ 0603
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 824MHz to 849MHz
Coupling Factor 15.2dB
Applications AMPS
Insertion Loss 0.35dB
Maximum Power Dissipation 3W
Isolation -38dB
Return Loss 23dB
Case / Package 0603
Win Source Part Number 202710-CP0603A0836CLTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CP0603A0836CLTR CAD Model

Description

Overview

The CP0603A0836CLTR component stands out for its precision and reliability in a variety of electronic applications. It is known for its performance consistency and compact design.

Features and Benefits

  • Accurate Performance: Ensures stable operation under varying conditions.
  • Compact and Lightweight: Perfect for devices requiring minimal space.
  • Enhanced Durability: Built to perform in demanding environments.
  • Versatile Use: Applied in multiple technological fields.

Applications

  • Telecommunication systems
  • Portable electronics
  • Automotive applications
  • Healthcare devices
  • Industrial equipment

Additional Details

With its innovative design, the CP0603A0836CLTR not only optimizes product efficiency but also simplifies assembly processes, contributing to cost-effectiveness in production.
