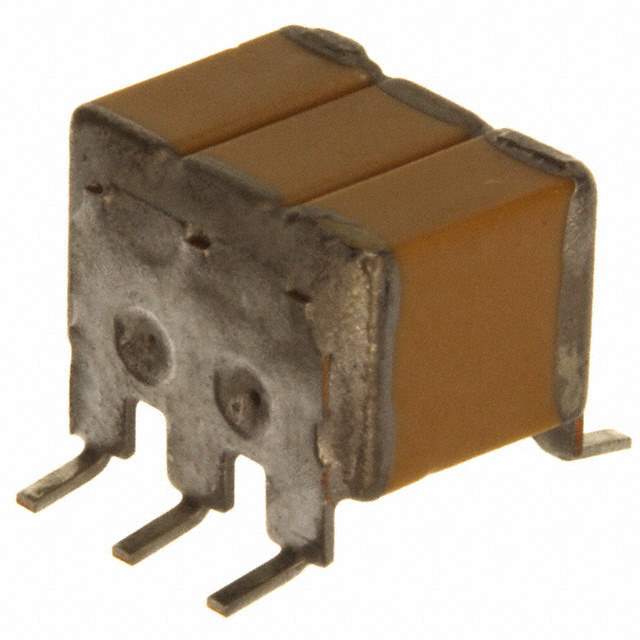

ST205C276MAL03 Real Image
Same model may have multiple batches, images only for reference.

ST205C276MAL03

Part No ST205C276MAL03
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
ST205C276MAL03 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series TurboCap™
Package Bulk
Capacitance 27 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case Stacked SMD, 6 L-Lead
Dimension 0.325" L x 0.300" W (8.26mm x 7.62mm)
Thickness (Max) 0.220" (5.59mm)
Lead Style L-Lead
Other Names 478-5073
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302899-ST205C276MAL03
Ultra Librarian 3D Model Ultra Librarian ST205C276MAL03 CAD Model

Description

The ST205C276MAL03 is a ceramic capacitor manufactured by KYOCERA AVX.

  • Feature: Low-ESL (stacked)
  • Applications: SMPS filtering, bypass, and decoupling applications
  • Win Source Part Number: 1302899-ST205C276MAL03
  • Capacitance: 27 µF
  • Tolerance: ±20%
  • Rated Voltage: 50V
  • Temperature Coefficient: X7R
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: Surface mountable
  • Package/Case: Stacked SMD, 6 L-Lead
