Same model may have multiple batches, images only for reference.

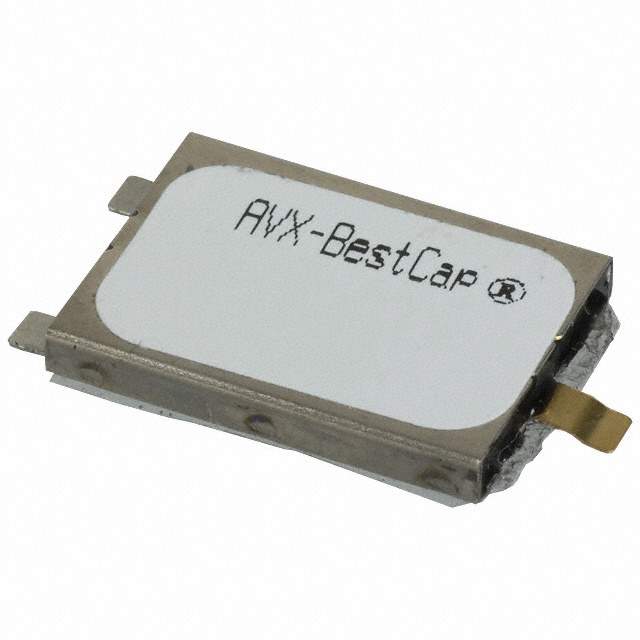

BZ055A683ZSB Real Image
Same model may have multiple batches, images only for reference.

BZ055A683ZSB

Part No BZ055A683ZSB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 68MF -20% +80% 5.5V SMD / 68 mF (EDLC) Supercapacitor 5.5 V BZ05, 3 Lead 125mOhm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series BestCap® BZ
Package Bulk
Product Status Obsolete
Capacitance 68 mF
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 125mOhm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination SMD (SMT) Tabs
Mounting SMD (SMT)
Package / Case BZ05, 3 Lead
Dimension 0.787" L x 0.591" W (20.00mm x 15.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Temperature Range - Operating -20°C ~ 70°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Other Names 478-6278
Standard Package 400
Win Source Part Number 1004899-BZ055A683ZSB
Ultra Librarian 3D Model Ultra Librarian BZ055A683ZSB CAD Model

Description

The KYOCERA AVX 1004899-BZ055A683ZSB is an electric double layer capacitor from the BestCap® BZ series with a capacitance of 68 mF and a voltage rating of 5.5V.

  • Capacitance: 68 mF
  • Voltage Rating: 5.5V
  • Tolerance: -20%, +80%
  • ESR (Equivalent Series Resistance): 125mOhm
  • Package/Case Size: BZ05, 3 Lead
  • Height: 0.240" (6.10mm)
  • Mounting: Surface
  • Packaging: Bulk
  • Temperature Range: -20°C to 70°C
  • Lifetime @ Temperature: 1000 hours @ 70°C
  • Status: Obsolete
