Same model may have multiple batches, images only for reference.

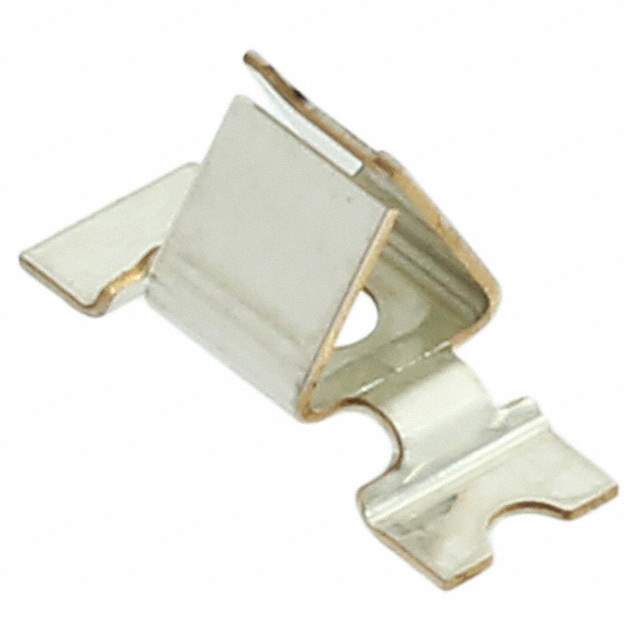

709296001123006 Real Image
Same model may have multiple batches, images only for reference.

709296001123006

Part No 709296001123006
Manufacturer AVX Corp/Kyocera Corp
Catalog Solid State Lighting Connectors
Description CONN SSL POKE-IN CONT 18-24AWG / 18-24 AWG SSL Contact, Poke-In Wire Solder Surface Mount, Bottom Entry
Datasheet
709296001123006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Contacts
Mfr KYOCERA AVX
Series Stript™ 70-9296
Package Tape & Reel
Style Board to Cable/Wire
Connector Type Contact, Poke-In Wire
Number of Positions 1
Mounting Type Surface Mount, Bottom Entry
Termination Solder
Wire Gauge 18-24 AWG
Contact Finish Tin
Contact Material Phosphor Bronze
Temperature Range - Operating -40°C ~ 125°C
Voltage Rating 300 V
Mating Cycles 5
Standard Package 1,600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1350423-709296001123006
Ultra Librarian 3D Model Ultra Librarian 709296001123006 CAD Model

Description

The Stript™ 70-9296 series solid state lighting connector contact is a poke-in wire contact with a solder termination.

  • Type: Poke-in Wire Contact
  • Termination: Solder
  • Contact Finish: Tin
  • Wire Gauge: 18-24 AWG
  • Connection Style: Board to Cable/Wire
  • Voltage Rating: 300V
  • Mounting Type: Surface Mount, Bottom Entry
  • Temperature Range: -40°C to 125°C
  • Packaging: Tape and Reel
  • Package Quantity: 1,600
  • ECCN: EAR99
  • REACH: Unaffected
  • Application: Solid State Lighting
