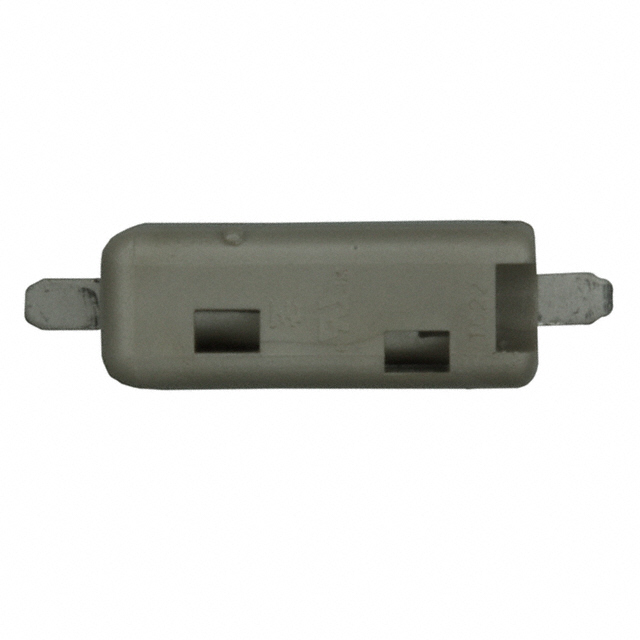

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel package
Style Board to Cable/Wire
Connector Type Receptacle, Poke-In Wire
Number of Positions 1
Mounting Surface Mount, Right Angle
Termination Solder
Housing Color White
Wire Gauge 18 AWG, 20 AWG, 22 AWG
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -40°C ~ 105°C
Voltage Rating 250V
Current Rating 4A
Win Source Part Number 761673-2008563-1
Popularity Medium
Supply and Demand Status Balance
Application Field Used in LED Lighting
Family Name 2008563
Introduction Date July 23, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2008563-1 CAD Model

Description

The TE Connectivity AMP Connectors 761673-2008563-1 is a surface mount, right angle board to cable/wire connector with 1 position.

  • Termination: Poke-in wire
  • Contact Finish: Tin
  • Housing Material: Liquid crystal polymer (LCP)
  • Wire Gauge: 18 AWG, 20 AWG, 22 AWG
  • Contact Material: Copper alloy
  • Voltage Rating: 250V
  • Current Rating: 4A
  • Supply and Demand: Balance
  • Introduction Date: July 23, 2008
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2026
  • Halogen-Free: Yes
  • Applications: LED lighting
