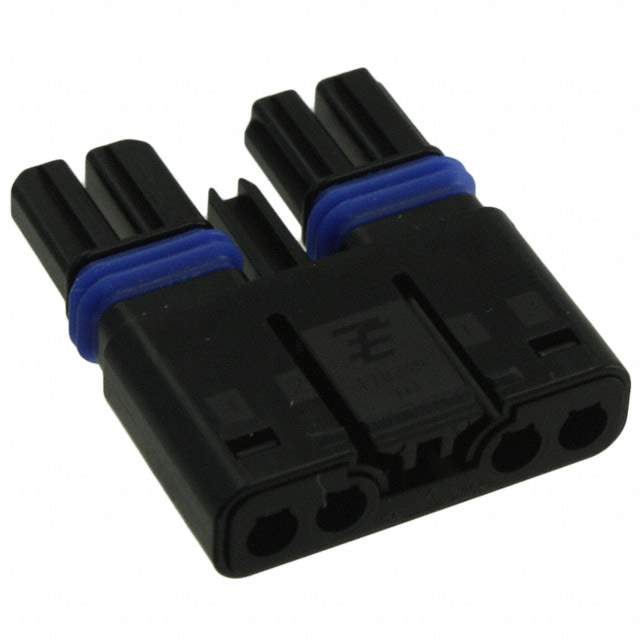

2106135-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series SlimSeal
Packaging Bulk
Style Cable/Wire to Cable/Wire or Board
Connector Type Plug Housing for Socket Contact
Number of Positions 4
Mounting Free Hanging (In-Line)
Termination Crimp
Pitch 0.138" (3.50mm)
Fastening Type Latch Lock
Housing Color Black
Housing Material Polycarbonate (PC)
Operating Temperature Range -40°C ~ 105°C
Voltage Rating 400V
Current Rating 3.5A (22-24AWG); 5A (18-20 AWG)
Ingress Protection IP67 - Dust Tight, Waterproof
Mating Cycles 30
Win Source Part Number 761782-2106135-4
Popularity Medium
Supply and Demand Status Limited
Family Name 2106135
Introduction Date March 31, 2010
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2106135-4 CAD Model

Description

The TE Connectivity AMP Connectors 761782-2106135-4 is a plug housing for socket contact with 4 positions and a pitch of 0.138" (3.50mm).

  • Current Rating: 3.5A (22-24AWG); 5A (18-20 AWG)
  • Voltage Rating: 400V
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Housing Material: Polycarbonate (PC)
  • Housing Color: Black
  • Mounting Style: Free Hanging (In-Line)
  • Connector Style: Cable/Wire to Cable/Wire or Board
  • Fastening Type: Latch Lock
  • Mating Cycles: 30
  • Family Name: 2106135
  • Popularity: Medium
  • EOL Date: 2026
