Same model may have multiple batches, images only for reference.

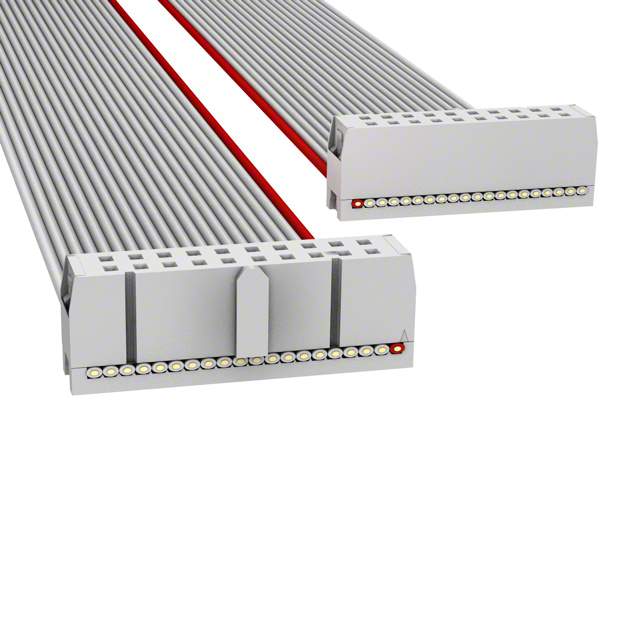

H3CCH-2006G Real Image
Same model may have multiple batches, images only for reference.

H3CCH-2006G

Part No H3CCH-2006G
Manufacturer Assmann WSW Components
Catalog Rectangular Cable Assemblies
Description IDC CBL - HHKC20H/AE20G/HHKC20H / 20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies - Rectangular Cable Assemblies
Mfr Assmann WSW Components
Package Bulk
Connector Type Socket to Socket
Number of Positions 20
Number of Rows 2
Pitch - Connector 0.100" (2.54mm)
Pitch - Cable 0.050" (1.27mm)
Length 0.500' (152.40mm, 6.00")
Features Polarizing Key
Color Gray, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number H3CCH-20
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1340568-H3CCH-2006G
Ultra Librarian 3D Model Ultra Librarian H3CCH-2006G CAD Model

Description

This 20-position, gray ribbon cable assembly features a polarizing key.

  • Length: 0.500 feet (152.40mm, 6.00 inches)
  • Shielding: Unshielded
  • Connector Type: Socket to Socket
  • Cable Termination: IDC
  • Connector Pitch: 0.100 inches (2.54mm)
  • Cable Pitch: 0.050 inches (1.27mm)
  • Application: Connecting Devices Using Ribbon Cables
  • ECCN: EAR99
  • REACH: Information Available Upon Request
