SR42W009 Antenova – Price, Stock & Datasheet

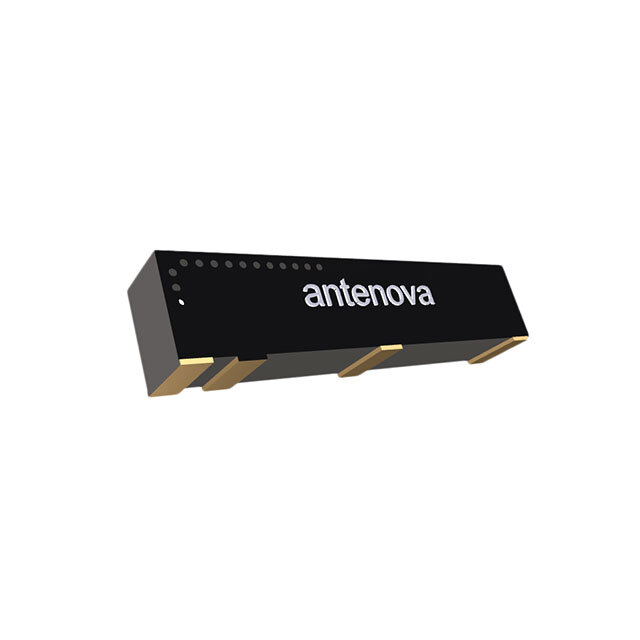

Same model may have multiple batches, images only for reference.

SR42W009

Part No SR42W009
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Antennas
Manufacturer Antenova
Part Status Not For New Designs
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz
Antenna Type Chip
Number of Bands 2
VSWR 1.5
Return Loss -7dB
Gain 5dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.173" (4.40mm)
Applications WLAN
Ultra Librarian 3D Model Ultra Librarian SR42W009 CAD Model
