The MAT01AH is a high-precision matched dual monolithic transistor developed by Analog Devices Inc., a company renowned for its innovative and high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs). This product is designed to provide users with exceptional transistor matching, which is crucial for applications requiring highly accurate differential amplification and current mirror configurations.

Key Features

• Exceptional Transistor Matching: The MAT01AH boasts outstanding matching characteristics, with very low offset voltage and current, and excellent thermal tracking over a wide temperature range.
• Low Noise: It exhibits low noise performance, making it an ideal choice for sensitive audio applications and instrumentation.
• High Gain: The device offers high current gain, which is essential for applications that demand a high level of amplification.
• Wide Operating Range: With a broad operating temperature range, the MAT01AH can reliably function in various environments and applications.

Applications

The MAT01AH is particularly well-suited for precision applications such as:

• Operational amplifier input stages
• Current sense amplifiers
• Logarithmic amplifiers
• Voltage references
• Differential amplifiers
• Analog computing elements

Reliability and Quality

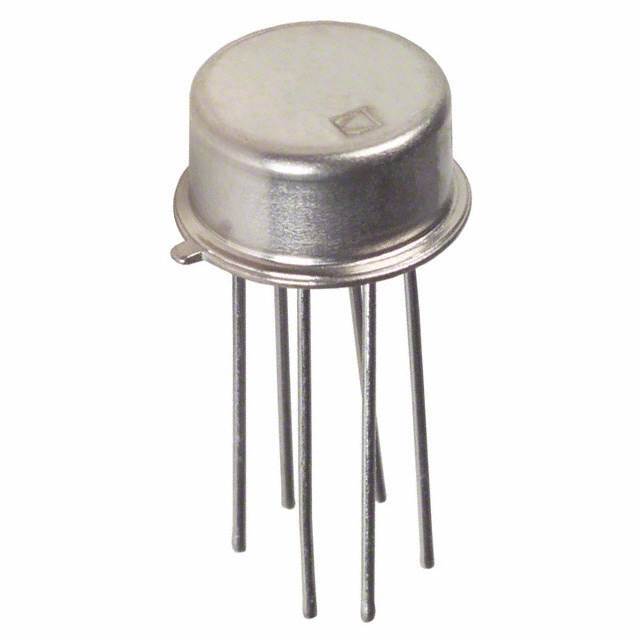

Analog Devices Inc. ensures that the MAT01AH meets the highest standards of quality and reliability. Each transistor pair is meticulously tested and characterized to guarantee performance that meets or exceeds the specified parameters. The MAT01AH is available in a hermetically sealed package, which provides robust protection against environmental factors, thus ensuring long-term stability and performance.

Technical Specifications

For detailed technical specifications, designers and engineers are encouraged to refer to the official datasheet provided by Analog Devices Inc. This document offers comprehensive information on electrical characteristics, pin configurations, package details, and application guidelines necessary for integrating the MAT01AH into various electronic systems.

With its exceptional performance and versatility, the MAT01AH from Analog Devices Inc. stands out as a premium choice for professionals seeking precision and reliability in their electronic designs.
