Product Overview: LTC6248HMS#TRPBF from Analog Devices Inc.

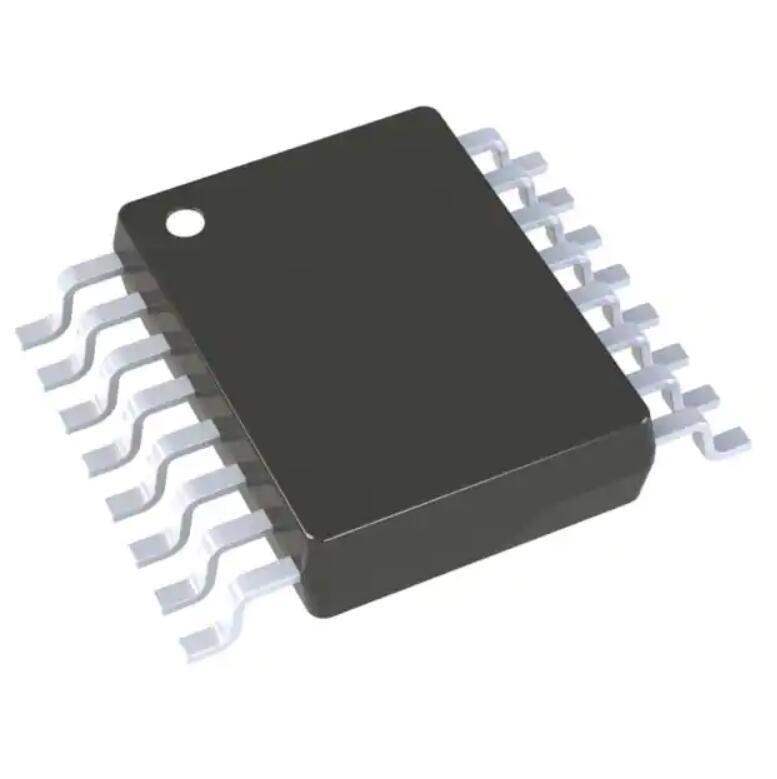

The LTC6248HMS#TRPBF is a high-speed, low-noise operational amplifier from Analog Devices Inc., designed to cater to a wide array of applications that require precision and speed. This op-amp is a part of the LTC6248 family, which is well-renowned for its exceptional performance in terms of speed-to-power ratio. The LTC6248HMS#TRPBF is available in a compact MSOP package, which is ideal for space-constrained applications.

Key Features

• High Speed: The device offers a slew rate of 1V/μs, making it suitable for fast signal processing applications.
• Low Noise: With a low input noise density of 8.5nV/√Hz at 1kHz, the LTC6248HMS#TRPBF ensures a clean and precise signal amplification, which is critical for high-fidelity systems.
• Low Power Consumption: It operates with a supply current of just 1mA per amplifier, which is beneficial for power-sensitive designs.
• Wide Supply Range: The device can be powered with a supply voltage ranging from 2.8V to 11V, providing flexibility in various power environments.
• Unity Gain Stable: This op-amp is stable at a gain of one, making it versatile for a variety of configurations without additional compensation.
• Rail-to-Rail Output: The LTC6248HMS#TRPBF features rail-to-rail output swing, which maximizes the dynamic range when operating from low supply voltages.

Applications

• Active Filters
• ADC Buffering
• Signal Conditioning
• Data Acquisition Systems
• Driving A/D Converters
• Medical Instrumentation
• Audio and Video Processing

The LTC6248HMS#TRPBF is a versatile operational amplifier that combines speed, precision, and low power consumption, making it an excellent choice for designers who require a high-performance op-amp with minimal power overhead. Its robust feature set ensures that it can be integrated into a broad spectrum of applications, from simple signal conditioning to more complex tasks such as driving analog-to-digital converters in high-precision measurement systems.

Overall, the LTC6248HMS#TRPBF operational amplifier stands out as a reliable and efficient solution for a multitude of electronic designs, where performance cannot be compromised.
