Analog Devices Inc. LTC5549IUDB#TRMPBF Overview

The LTC5549IUDB#TRMPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to provide exceptional frequency conversion from 2GHz to 14GHz. This mixer is an ideal choice for modern RF and microwave applications, such as wireless infrastructure, satellite communications, RF test equipment, and radar systems, where high linearity and low noise are critical for system performance.

Key Features

• Wide RF Frequency Range: The device operates over a broad frequency range of 2GHz to 14GHz, making it highly versatile for various high-frequency signal processing applications.
• High Linearity: It offers excellent linearity with a high input IP3 (third-order intercept point), which is essential for maintaining signal integrity in complex signal environments.
• Integrated LO Buffer: The mixer includes an integrated LO buffer, simplifying the design by reducing the need for external circuitry.
• Low LO Drive: It requires a low LO drive level, which helps to minimize power consumption and eases integration with other RF components.
• IF Bandwidth: With a wide IF bandwidth, the LTC5549IUDB#TRMPBF supports a variety of intermediate frequencies, offering flexibility in system design.

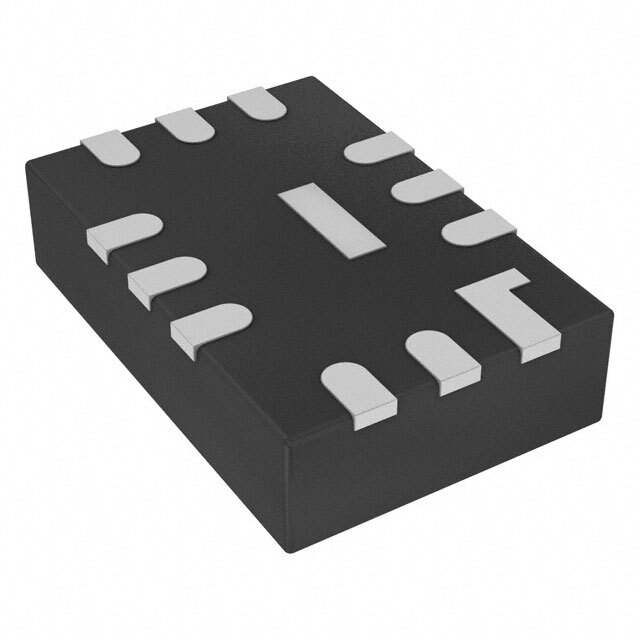

• Compact Package: The device comes in a compact, 3mm x 2mm QFN package that is suitable for space-constrained applications.
• Temperature Range: It operates over a temperature range of -40°C to 105°C, ensuring reliable performance across a wide range of environmental conditions.

Applications

• Wireless Infrastructure
• Satellite Communications
• RF Test Equipment
• Radar Systems
• Microwave Point-to-Point Backhaul Radios

With its combination of high performance, wide frequency range, and integration, the LTC5549IUDB#TRMPBF from Analog Devices Inc. is an excellent choice for engineers looking to improve the performance and efficiency of their RF and microwave systems. Its robust design and ease of use make it suitable for both prototyping and production, ensuring that it can meet the demands of a wide range of high-frequency applications.
