Analog Devices Inc. LTC2955CDDB-2#TRPBF Push Button On/Off Controller

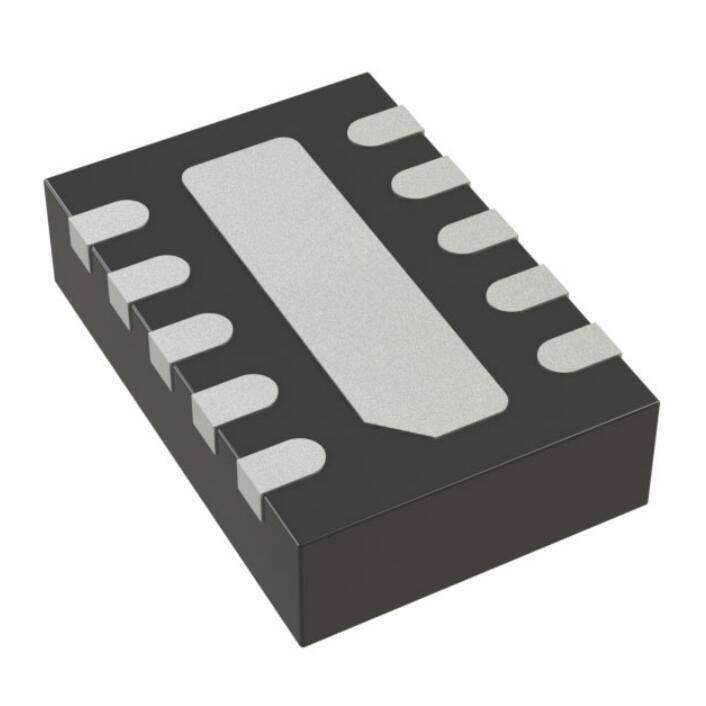

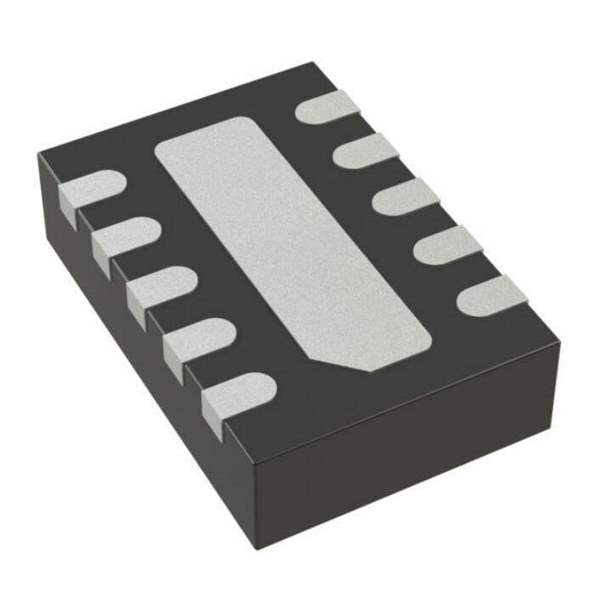

The LTC2955CDDB-2#TRPBF is a sophisticated push button on/off controller from Analog Devices Inc., designed to manage system power via a simple push button interface. This compact, feature-rich device is housed in a DFN package and is part of the LTC2955 series, which offers a versatile solution for power control in a variety of electronic applications.

Key Features

• Adjustable On/Off Control: The LTC2955CDDB-2#TRPBF allows users to turn their system on and off by simply pressing a push button, providing an intuitive interface that simplifies user interaction.
• Integrated Timer: An onboard timer function ensures that the system can be programmed to turn off after a specified period, enhancing power conservation and extending battery life in portable devices.
• Wide Input Voltage Range: With an input voltage range of 2.7V to 26.4V, this controller is suitable for a broad range of applications, from low-voltage portable electronics to higher voltage industrial systems.
• Low Quiescent Current: The device features a low quiescent current, which is critical for battery-powered applications where power efficiency is paramount.
• Adjustable Turn-On Threshold: The turn-on threshold can be adjusted to accommodate various system requirements, offering flexibility in design.
• Under-Voltage Lockout: An under-voltage lockout (UVLO) feature prevents the system from operating under conditions that could be harmful or less efficient, such as low battery voltages.

Applications

The LTC2955CDDB-2#TRPBF is ideal for a wide range of applications, including:

• Portable and battery-powered devices
• Automotive electronics
• Industrial control systems
• Medical devices
• Embedded systems

With its robust design and versatile features, the LTC2955CDDB-2#TRPBF from Analog Devices Inc. is an excellent choice for designers looking to incorporate a reliable and user-friendly power management solution into their systems. Its ability to provide precise control over system power states not only enhances the user experience but also contributes to the overall efficiency and longevity of the application it serves.
