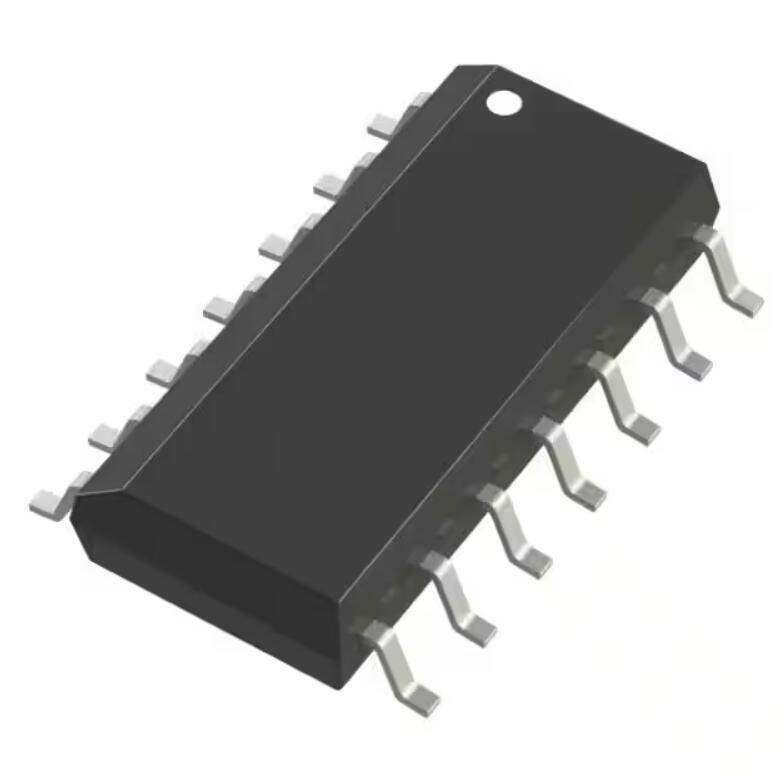

Analog Devices Inc. LTC2864CS-1#TRPBF Overview

The LTC2864CS-1#TRPBF from Analog Devices Inc. is a robust and versatile transceiver component designed for RS485/RS422 applications. It is a high-quality integrated circuit that ensures reliable data communication in industrial, networking, and control systems. This transceiver is particularly well-suited for environments where electrical noise and long-distance communication are common challenges.

Key Features

• Transceiver Type: The LTC2864CS-1#TRPBF is a bidirectional transceiver meant for RS485 and RS422 networks, providing differential communication capabilities.
• High Speed: It supports data rates up to 20Mbps, making it suitable for high-speed data transmission requirements.
• Extended Temperature Range: With an operational temperature range from -40°C to +125°C, the LTC2864CS-1#TRPBF can perform reliably in extreme temperature conditions.
• Integrated Protection: The device includes integrated electrostatic discharge (ESD) protection and features robust driver outputs that can withstand voltage faults up to ±60V, enhancing its durability and reliability in harsh environments.
• Low Power Consumption: It is designed for low power operation, which is critical for energy-efficient designs and battery-powered applications.
• Package: The LTC2864CS-1#TRPBF is available in a compact 10-lead MSOP package, making it space-efficient for PCB design.

Applications

The LTC2864CS-1#TRPBF is ideal for a wide range of applications that require robust data communication, such as:

• Industrial Control Systems
• Factory Automation
• Building Automation
• Process Control Networks
• Networked Security Systems
• Automotive Control Systems

Product Quality and Support

Analog Devices Inc. is known for its commitment to providing high-quality components. The LTC2864CS-1#TRPBF transceiver is manufactured with precision and is subject to rigorous testing to ensure it meets industry standards for performance and durability. In addition, Analog Devices provides comprehensive technical support and documentation, making the integration of the LTC2864CS-1#TRPBF into your design project straightforward and efficient.
