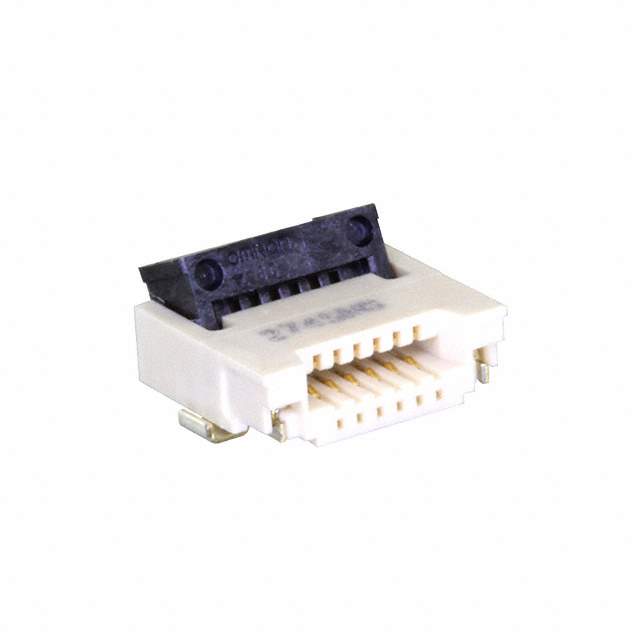

XF3M(1)-0615-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M(1)-0615-1B

Part No XF3M(1)-0615-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 6POS 1.00MM R/A / 6 Position FFC, Discrete Wire Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
XF3M(1)-0615-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FFC, Discrete Wire
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 6
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF3M
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number XF3M(1)-0615-1B BY OMZ,Z5872DKR,XF3M(1)-0615-1B BYOMZ,Z5872TR,XF3M(1)-0615-1B-ND,Z5872CT,XF3M106151B,XF3M106151BBYOMZ
Standard Package 1,500
Win Source Part Number 1333267-XF3M(1)-0615-1B
Ultra Librarian 3D Model Ultra Librarian XF3M(1)-0615-1B CAD Model

Description

The Omron Electronics Inc-EMC Div XF3M(1)-0615-1B FFC, FPC (Flat Flexible) Connector Assembly is a top and bottom contact type connector with a rotary lock and backlock mechanism.

  • Contact Type: Top and bottom
  • Locking Mechanism: Rotary lock and backlock
  • Pitch: 0.039 inches (1.00mm)
  • Height Above Board: 0.079 inches (2.00mm)
  • Material: Copper alloy
  • Plating: Gold plating and flash thickness
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Cable End Type: Tapered
  • Housing and Actuator Materials: Liquid crystal polymer (LCP), halogen-free
  • Housing Color: Natural
  • Actuator Color: Black
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 85°C
  • Packaging: Reel
  • Standard Package: 1,500 pieces per standard package
