The HMC925LC5TR from Analog Devices Inc. is a high-performance, broadband, GaAs MMIC I/Q Mixer with an integrated Local Oscillator (LO) amplifier. This advanced component is designed to meet the demanding requirements of communication, test and measurement, and military systems, offering a wide frequency range and excellent linearity.
Key Features
- Frequency Range: The HMC925LC5TR operates over a broad frequency range, making it suitable for a wide array of RF applications.
- Integrated LO Amplifier: The built-in LO amplifier simplifies system design by reducing the number of external components required.
- High Linearity: With its excellent linearity, this mixer maintains signal integrity, ensuring high-quality signal processing.
- Conversion Loss: The device provides a low conversion loss, improving the overall efficiency of the signal conversion process.
- High Isolation: It offers high LO to RF and LO to IF isolation, minimizing potential interference and preserving signal purity.
Applications
- Point-to-Point and Point-to-Multipoint Radios
- Military & Space
- Test Equipment & Sensors
- Communication Infrastructure
Product Specifications
| Parameter |
Value |
| Package/Case |
32-VFQFN Exposed Pad |
| Frequency |
6 GHz to 28 GHz |
| Conversion Loss |
Typically 9 dB |
| LO Frequency |
6 GHz to 28 GHz |
| IF Frequency |
DC to 7 GHz |
| Supply Voltage |
5V |
| Operating Temperature |
-40°C to 85°C |

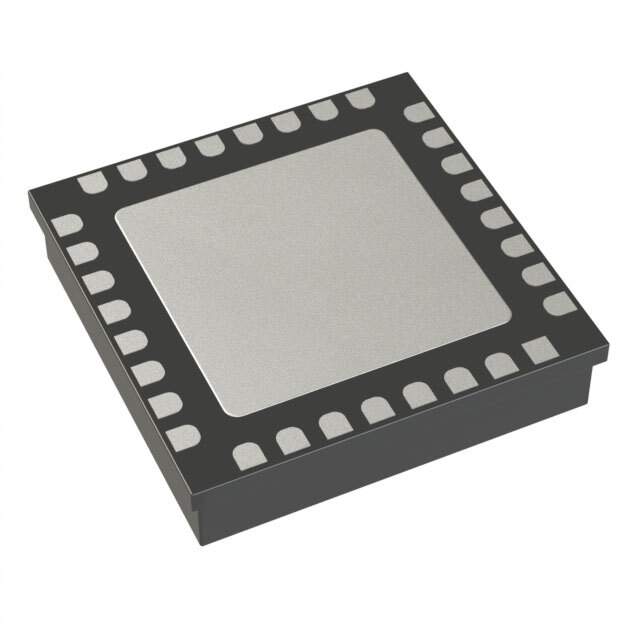

The HMC925LC5TR is available in a compact 32-VFQFN exposed pad package, providing a space-efficient solution for high-density circuit designs. With its robust performance and flexible application potential, the HMC925LC5TR is an ideal choice for engineers looking to enhance their RF and microwave systems.
