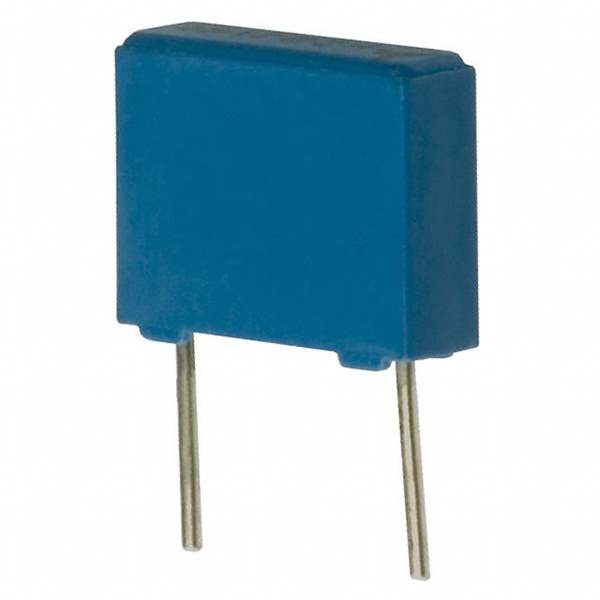

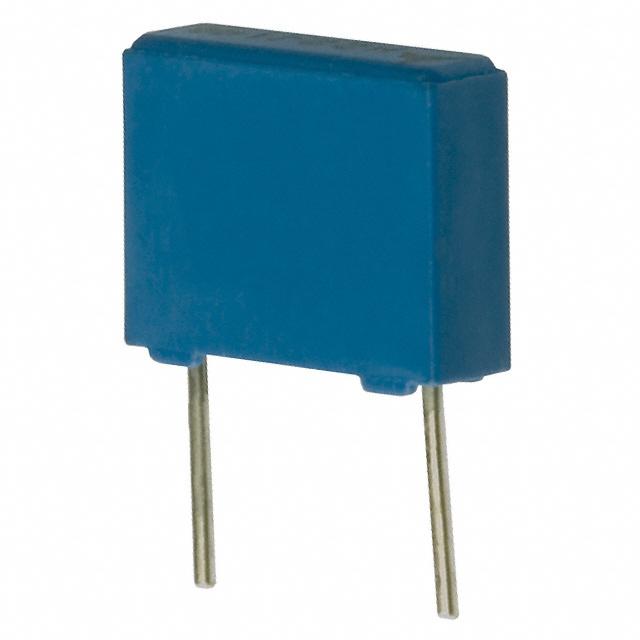

B32520C1224J EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32520C1224J

Part No B32520C1224J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 100VDC RADIAL
Datasheet
B32520C1224J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 0.22μF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 104417-B32520C1224J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32520C1224J CAD Model

Description

Product Description

The B32520C1224J is a state-of-the-art metallized film capacitor, tailored to lend exceptional electronic support in numerous advanced applications.

Applications

  • Uninterruptible power supplies (UPS)
  • Smart grids
  • Electric vehicle systems
  • High-frequency power conversion
  • Professional audio equipment

Features and Benefits

  • Capacitance Value: 0.22μF
  • Voltage Rating: 400V
  • High peak current handling capability
  • Outstanding volumetric efficiency
  • Low losses with high insulation resistance

This capacitor is highly valued for its noise suppression capabilities and optimized energy distribution characteristics.
