Analog Devices Inc. HMC570LC5 GaAs PHEMT MMIC Low Noise Amplifier

The HMC570LC5 from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs) pseudomorphic high electron mobility transistor (PHEMT) monolithic microwave integrated circuit (MMIC) low noise amplifier (LNA) designed to offer exceptional noise performance and gain. This LNA operates within the frequency range of 4 to 8 GHz, making it an ideal choice for applications in the C-band and X-band frequencies, such as radar systems, satellite communications, and electronic warfare.

With its superior low noise figure of 1.6 dB typical and a high gain of 18 dB at mid-band, the HMC570LC5 ensures excellent signal amplification with minimal added noise, which is critical for maintaining the integrity of the received signal in sensitive RF and microwave systems. This LNA also features an output power of +18 dBm at 1 dB compression point, providing a robust output signal capable of driving subsequent stages in a signal chain without significant degradation in signal quality.

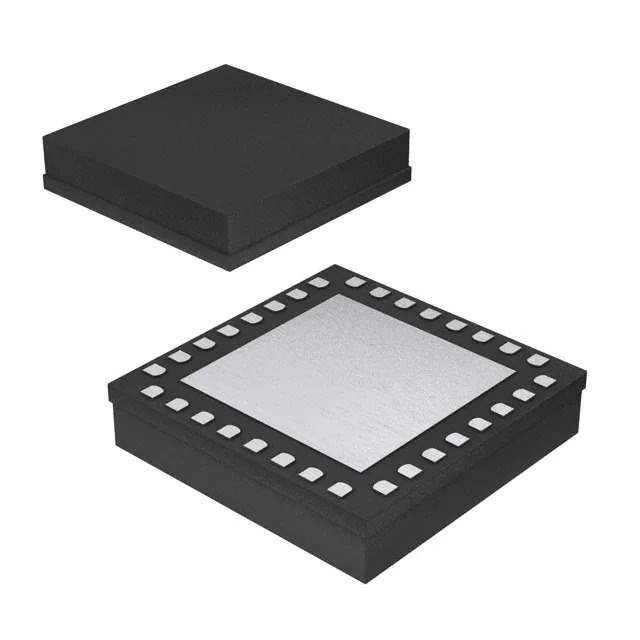

The HMC570LC5 is housed in a compact 5x5 mm surface-mount leadless chip carrier (LC5) package, which offers a small footprint while providing excellent thermal performance. It is designed to be easily integrated into a wide array of high-frequency applications and systems, with minimal impact on space constraints.

Additional features of the HMC570LC5 include its ability to operate over a wide supply voltage range of +3 to +5 V, an I/O return loss of 15 dB, and an integrated power detector that simplifies system-level power monitoring and control. This LNA also boasts a robust ESD protection mechanism, enhancing its durability and reliability in complex electronic environments.

In summary, the HMC570LC5 from Analog Devices Inc. is a versatile and high-performing low noise amplifier that delivers exceptional noise performance and gain for a variety of RF and microwave applications. Its compact size, integrated features, and robust construction make it an excellent choice for engineers looking to enhance their system performance with a reliable and efficient LNA solution.
