The HMC553ALC3BTR is a state-of-the-art GaAs MMIC Double-Balanced Mixer by Analog Devices Inc., designed to cater to the demanding needs of RF and microwave communication systems. This high-performance component is ideal for applications in radar systems, satellite communications, and test equipment that require a broad frequency range and excellent isolation characteristics.

Key Features

• Frequency Range: The HMC553ALC3BTR operates over a wide frequency range, making it versatile for various applications. It can handle RF and LO frequencies from 6 GHz to 26 GHz, and IF frequencies from DC to 3 GHz.
• High Isolation: This mixer provides excellent isolation between ports, minimizing signal leakage and ensuring high-quality signal integrity. LO to RF isolation is typically 35 dB, which helps to prevent the local oscillator signal from reaching the RF input.
• Conversion Loss: It boasts a low conversion loss, typically 9 dB, which enhances the overall efficiency of the signal conversion process.

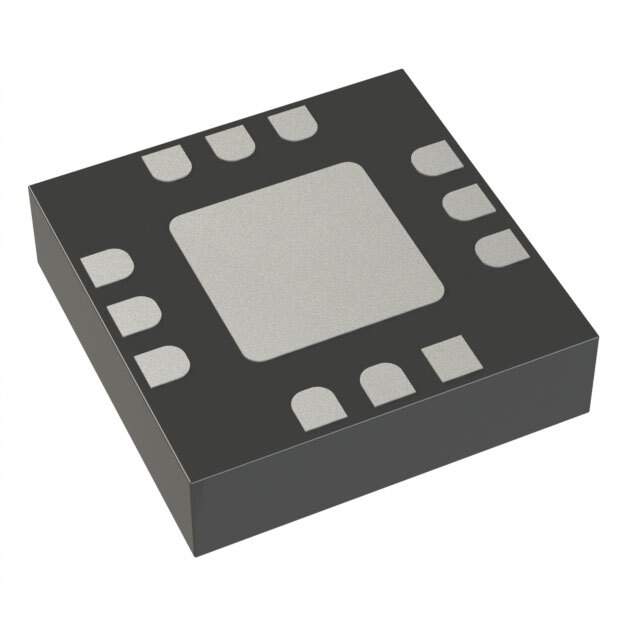

• Package: The HMC553ALC3BTR comes in a compact 3x3 mm ceramic QFN package, which is suitable for space-constrained applications and offers excellent thermal performance.
• Passive Design: As a passive double-balanced mixer, it does not require DC bias, simplifying circuit design and reducing power consumption.

Applications

The versatility of the HMC553ALC3BTR makes it an excellent choice for a broad range of applications, including:

• Point-to-point and point-to-multipoint radios
• Military and space
• Test equipment and sensors
• Communication systems

Conclusion

Analog Devices Inc.'s HMC553ALC3BTR is designed for those who require a high-quality, reliable mixer that delivers consistent performance across a wide frequency range. Its robust design and excellent isolation make it a go-to component for engineers looking to enhance their RF and microwave systems. Whether for commercial or military applications, the HMC553ALC3BTR stands out as a top-tier choice for mixing solutions.
