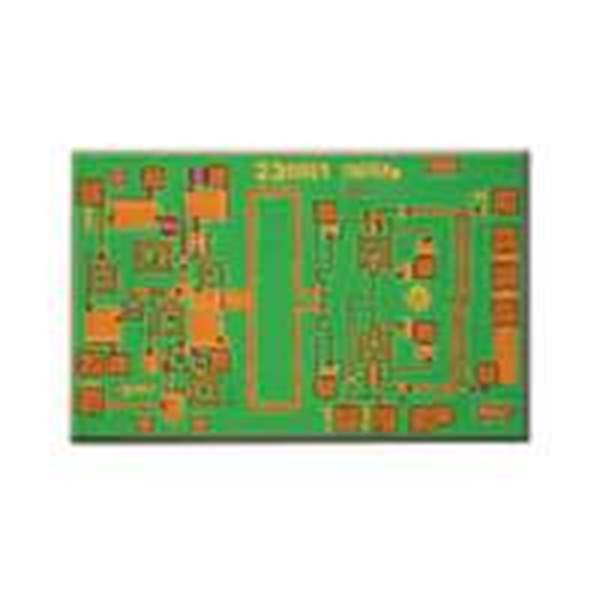

The HMC404 by Analog Devices is a cutting-edge GaAs MMIC PHEMT Distributed Power Amplifier die that operates between DC to 15 GHz. This versatile amplifier is designed to cater to a wide range of applications, from military to commercial communication systems, thanks to its broad frequency range and exceptional performance characteristics.

Key Features

• Frequency Range: The HMC404 delivers consistent performance across a vast frequency spectrum from DC to 15 GHz, making it suitable for various applications including test instrumentation, military radar, and broadband communications.
• Gain: It offers a high gain of 13 dB at mid-band frequencies, ensuring strong signal amplification for a variety of uses.
• Output Power: With an output power of +28 dBm at 1 dB compression point, the HMC404 is capable of driving high-power signals without significant distortion.
• Output IP3: The amplifier provides an outstanding output third-order intercept (IP3) of +42 dBm, indicative of its excellent linearity and ability to maintain signal integrity.
• Supply Voltage: It operates on a supply voltage of +10 V, integrating seamlessly with a wide array of electronic systems.
• Die Size: The compact die size of 3.99 mm x 1.52 mm allows for integration into space-constrained applications without sacrificing performance.

Applications

• Electronic Warfare (EW) and Electronic Counter Measures (ECM)
• Fiber Optic and Broadband Telecom
• Microwave Radio and VSAT
• Test Instrumentation
• Military Radar

The HMC404 from Analog Devices Inc. is not just another amplifier; it is a testament to the company's commitment to providing high-quality, reliable components that push the boundaries of technology. Whether for sophisticated military systems or high-speed commercial networks, the HMC404 is engineered to deliver top-notch performance where it matters most.
