The HMC292LM3C is a high-performance, passive double-balanced mixer from Analog Devices Inc. This component is designed to provide RF/IF engineers with a versatile solution for frequency conversion in a wide range of applications, including wireless infrastructure, satellite communications, test equipment, and military systems. The HMC292LM3C leverages Analog Devices' expertise in high-frequency design to deliver exceptional performance and reliability.

Key Features

• Frequency Range: The HMC292LM3C operates over a broad frequency range, with an RF/LO frequency from 15 GHz to 35 GHz and an IF frequency from DC to 5 GHz, making it suitable for a variety of high-frequency applications.
• Conversion Loss: This mixer features a low conversion loss, which enhances the overall system sensitivity and performance.
• LO Drive Level: The mixer is designed to operate with an LO drive level of +17 dBm, providing a robust signal for frequency conversion processes.
• Passive Design: As a passive mixer, the HMC292LM3C does not require DC power for operation, thus simplifying circuit design and reducing power consumption.

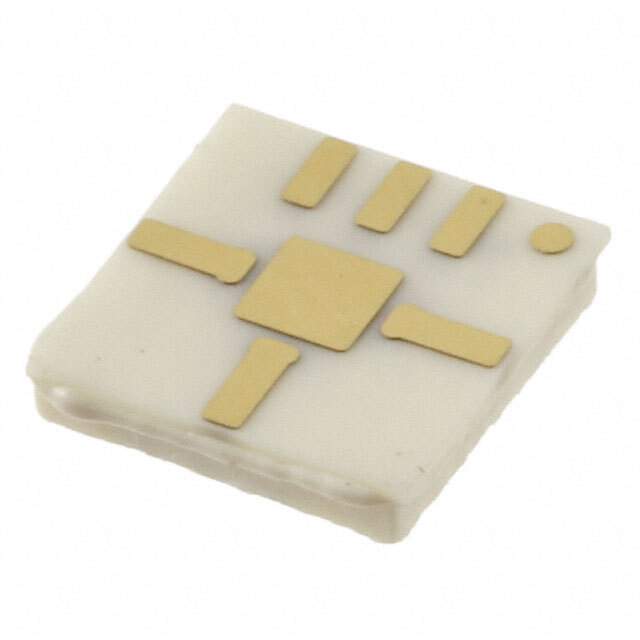

• Compact Package: Housed in a compact 3x3 mm SMT package, the HMC292LM3C is designed for space-constrained applications where performance cannot be compromised.
• High Isolation: The device offers excellent isolation between ports, minimizing potential interference and crosstalk in complex RF systems.

Applications

• Point-to-point and point-to-multipoint radios
• VSAT/Satellite communications
• Military radar and sensors
• Test and measurement equipment
• Electronic warfare systems

The HMC292LM3C from Analog Devices Inc. is a testament to their commitment to providing advanced solutions for today's challenging RF/IF applications. Its robust design and high performance make it an ideal choice for engineers looking for a reliable and efficient mixer component. With its broad frequency range, low conversion loss, and high isolation, the HMC292LM3C stands out as a versatile component in the design of high-frequency electronic systems.
