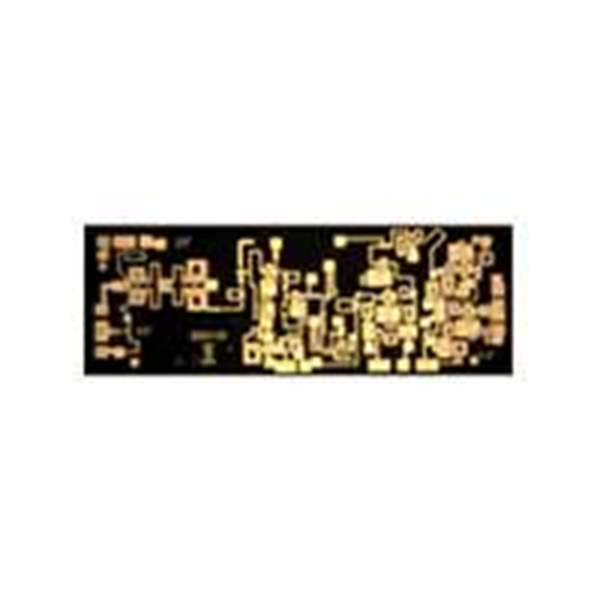

The HMC1093-SX from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) which serves as a double-balanced mixer. This device is designed to cater to the needs of RF and IF engineers, providing an exceptional balance of performance and reliability for a range of applications including test and measurement systems, military and space equipment, and broadband telecommunications.

The HMC1093-SX operates within the frequency range of 15 GHz to 35 GHz in the Radio Frequency (RF) band, and between 14 GHz and 32 GHz in the Local Oscillator (LO) band, making it highly suitable for K and Ka-band applications. Its Intermediate Frequency (IF) bandwidth stretches from DC to 5 GHz, offering a wide range for various design requirements.

Featuring a conversion loss of 9 dB typical, this mixer provides excellent RF performance that ensures signal integrity and quality. Additionally, the HMC1093-SX boasts an Input IP3 of 25 dBm, which indicates its high linearity and ability to maintain signal fidelity even at high input power levels. This characteristic is particularly beneficial in complex RF systems where maintaining the quality of the signal is paramount.

One of the key advantages of the HMC1093-SX is its passive design, which does not require any DC bias, simplifying the integration into various systems. Moreover, it is available in a compact, RoHS-compliant, 4x4 mm surface-mount package, making it easy to incorporate into space-constrained designs without compromising performance.

Analog Devices Inc. is known for its commitment to quality, and the HMC1093-SX is no exception. It is designed to meet the stringent requirements of high-stakes applications, ensuring reliability and durability. Whether you are developing sophisticated military radar systems or cutting-edge communication infrastructure, the HMC1093-SX offers the performance and dependability you need to succeed.
