The EVAL-ADUC7023QSPZ1 is a highly integrated evaluation board designed by Analog Devices Inc. to showcase the capabilities and features of the ADUC7023 precision analog microcontroller. This microcontroller is particularly suited for direct interfacing to external precision sensors in both wired and battery-powered applications.

Key Features

• High-Performance Microcontroller: The ADUC7023 is at the heart of the evaluation board, featuring a 32-bit ARM7TDMI MCU core, allowing for sophisticated signal processing and control algorithms.
• Precision Analog I/O: The board includes multichannel 12-bit analog-to-digital converters (ADCs) and 12-bit digital-to-analog converters (DACs), providing high precision for a wide range of applications.
• On-Board Debugging: Equipped with JTAG interface support, the EVAL-ADUC7023QSPZ1 facilitates easy programming and in-system debugging without the need for additional hardware.
• Flexible Power Options: The evaluation board can be powered through USB or an external power supply, making it versatile for different testing environments.
• Extensive Range of Peripherals: Includes UART, SPI, I²C interfaces, and GPIOs, offering a rich set of peripherals to interface with external components or systems.

Applications

The EVAL-ADUC7023QSPZ1 is designed to be a versatile platform suitable for a variety of applications, including:

• Industrial control systems
• Smart sensor interfaces
• Data acquisition systems
• Battery-powered devices
• Medical instrumentation

Software Support

Analog Devices offers comprehensive software support for the EVAL-ADUC7023QSPZ1, including example code and a full-featured development environment. This makes it easier for engineers to get started with their designs and reduce time-to-market.

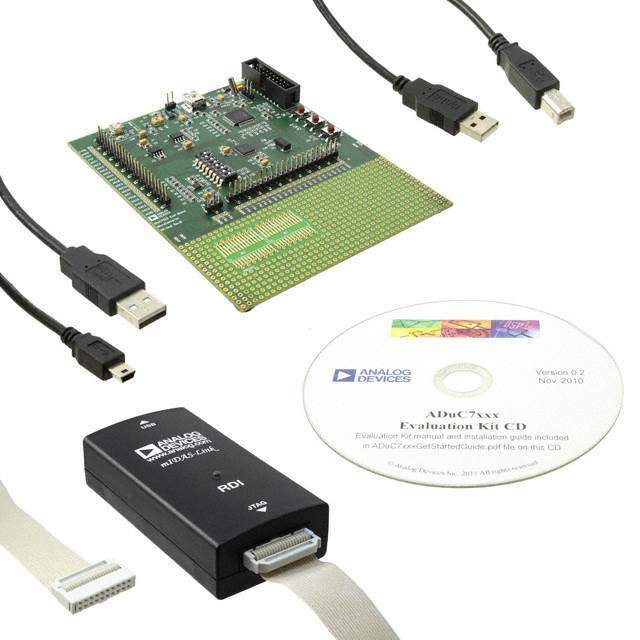

Package Contents

The evaluation board package typically includes:

• EVAL-ADUC7023QSPZ1 Evaluation Board
• Associated documentation and software

With its robust set of features and extensive support, the EVAL-ADUC7023QSPZ1 evaluation board is an excellent tool for developers looking to explore the functionalities of the ADUC7023 microcontroller and accelerate the development of precision analog applications.
