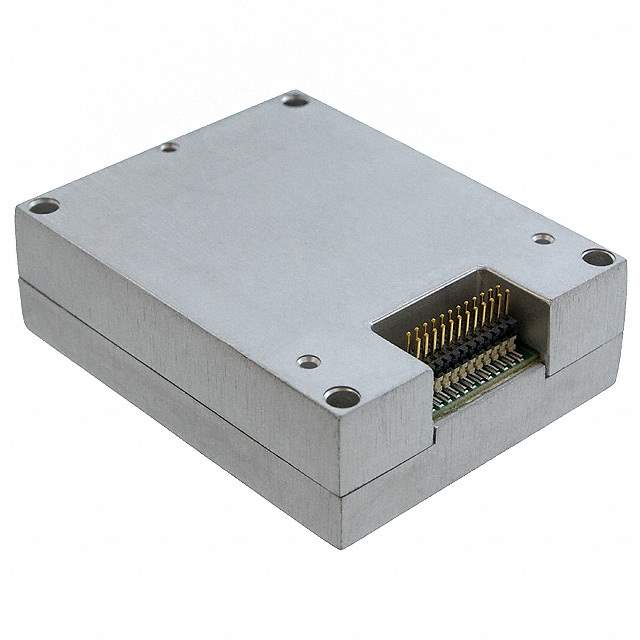

ADIS16136AMLZ

Part No ADIS16136AMLZ
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Gyroscopes
Description GYROSCOPE DIGITAL 24MSM / Gyroscope Z (Yaw) ±450 380Hz SPI Module
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Gyroscopes
Manufacturer Analog Devices Inc.
Packaging Tray
Type Digital
Axis Z (Yaw)
Range °/s ±450
Sensitivity (LSB/(°/s)) 14007
Bandwidth 380Hz
Output Type SPI
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 120 mA
Features Sleep Mode, Temperature Sensor
Temperature Range - Operating -40°C ~ 85°C
Case / Package Module
Base Product Number ADIS16136
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8542.39.0001
Other Part Number -2735-ADIS16136AMLZ
Standard Package 1
Win Source Part Number 1336506-ADIS16136AMLZ
Ultra Librarian 3D Model Ultra Librarian ADIS16136AMLZ CAD Model

Description

ADIS16136AMLZ - High-Performance, Precision Gyroscope

The ADIS16136AMLZ is a state-of-the-art, precision angular rate sensor (gyroscope) from Analog Devices Inc., designed to meet the needs of demanding industrial and instrumentation applications. This high-performance gyro offers exceptional stability and reliability, making it an ideal choice for platform stabilization, navigation, robotics, and motion control systems.

Key Features and Benefits

  • Precision Sensing: The ADIS16136AMLZ provides precise measurement of angular velocity with a dynamic range of ±450°/sec and excellent linearity.
  • High Stability: It offers industry-leading bias stability and low noise density, which are critical for accurate and reliable measurements over time and temperature changes.
  • Compact and Rugged: Housed in a compact and robust laser-welded hermetic package (LCC), the ADIS16136AMLZ is designed to withstand harsh environments, making it suitable for both commercial and military applications.
  • Easy Integration: With a flexible SPI interface, this device can be easily integrated into a variety of systems without the need for complex programming or additional components.
  • Factory Calibration: The sensor is factory calibrated for sensitivity, bias, and alignment, which reduces the need for system-level calibration and accelerates time to market.
  • Power Efficiency: The ADIS16136AMLZ operates on a single supply voltage of 4.85 V to 5.15 V, optimizing power consumption for battery-powered devices.
  • Diagnostic Functions: It includes built-in self-test capabilities and status indicators that provide assurance of proper system operation.

Applications

  • Platform stabilization and control
  • Navigation and guidance systems
  • Robotics and unmanned vehicles
  • Instrumentation and test equipment
  • Industrial control systems

The ADIS16136AMLZ by Analog Devices Inc. sets a new standard for gyroscopic sensors by offering unmatched performance in a compact, rugged package. Whether for precise motion tracking or stable platform control, this gyroscope is engineered to deliver accurate and consistent results for the most challenging applications.
