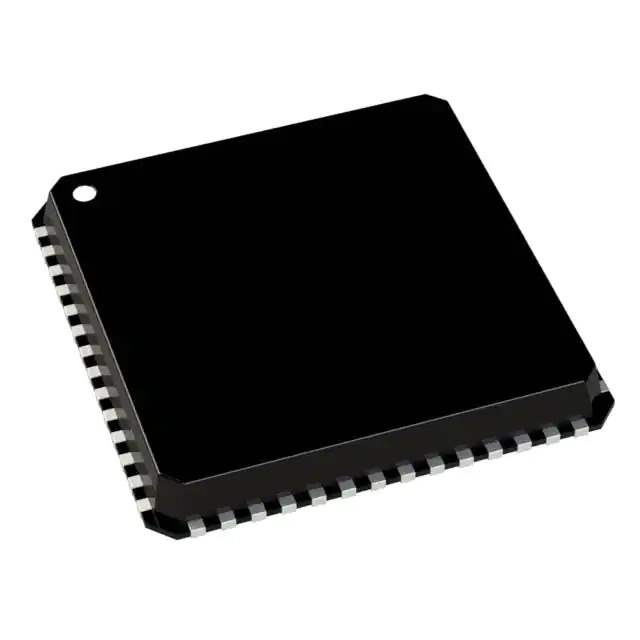

Analog Devices Inc. ADUC842BCP62-5 Microcontroller

The ADUC842BCP62-5 is a highly integrated microcontroller from Analog Devices Inc., designed to offer a robust solution for sophisticated control applications. This microcontroller is a part of the MicroConverter® series, featuring precision analog I/O capabilities alongside a multi-channel 12-bit analog-to-digital converter (ADC) and a dual 12-bit digital-to-analog converter (DAC).

At the heart of the ADUC842BCP62-5 is an 8-bit MCU compatible with the industry-standard 8052 instruction set, which provides a familiar environment for developers and simplifies the design process. The device operates at a core clock speed of 16.78 MHz, giving it the power to handle complex tasks efficiently.

One of the standout features of the ADUC842BCP62-5 is its on-chip data acquisition system. The 12-bit ADC offers up to 8 differential or 16 single-ended input channels with a conversion time as low as 10 µs, making it suitable for real-time applications. The dual 12-bit DACs provide a high level of precision for analog output requirements, and they can be used for control loop applications or to generate complex waveforms.

In terms of memory, the ADUC842BCP62-5 is equipped with 62KB of non-volatile Flash/EE memory, which is segmented for simplicity and reliability. The Flash/EE memory allows for in-circuit reprogramming and data storage, ensuring flexibility and ease of updates. Additionally, there is 4KB of SRAM, ensuring sufficient working memory for most applications.

Connectivity and interfacing are facilitated by a range of peripherals including UART, SPI, and I²C serial I/O, along with 32 general-purpose I/O lines. This versatile set of interfaces ensures that the ADUC842BCP62-5 can communicate with a wide array of devices and sensors, making it an excellent choice for industrial control systems, instrumentation, and smart sensing applications.

The device is designed with power efficiency in mind, featuring power management modes such as idle and power-down options to conserve energy. The ADUC842BCP62-5 operates within the extended industrial temperature range of -40°C to +125°C, and is available in a 52-lead LQFP package, making it suitable for harsh environments and compact designs.

Overall, the ADUC842BCP62-5 from Analog Devices Inc. is a powerful and versatile microcontroller that combines analog precision with digital processing, making it an ideal choice for a wide range of high-performance applications.
