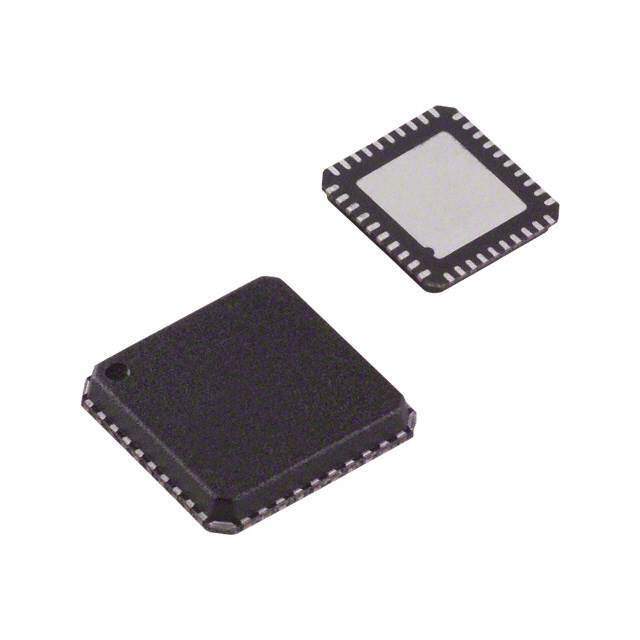

ADRF6807ACPZ-R7

Part No ADRF6807ACPZ-R7
Manufacturer Analog Devices Inc.
Catalog RF Demodulators
Description RF DEMOD IC 700MHZ-1.05GHZ 40CSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features RF Demodulator IC 700MHz ~ 1.05GHz 40-VFQFN Exposed Pad, CSP
Manufacturer Analog Devices Inc.
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
Package 40-VFQFN Exposed Pad, CSP
Family Name ADRF6807
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ADRF6807ACPZR7, ADRF6807ACPZ-R7-ND, ADRF6807ACPZ-R7CT, ADRF6807ACPZ-R7TR, ADRF6807ACPZ-R7DKR
Quantity per package 750
Popularity High
Supply and Demand Status Balance
Win Source Part Number 910806-ADRF6807ACPZ-R7
Ultra Librarian 3D Model Ultra Librarian ADRF6807ACPZ-R7 CAD Model

Description

ADRF6807ACPZ-R7 from Analog Devices Inc.

The ADRF6807ACPZ-R7 is a sophisticated and versatile integrated radio frequency (RF) mixer from the esteemed manufacturer, Analog Devices Inc. This high-performance component is designed to streamline the design and improve the functionality of RF and IF signal chains in a wide array of applications, such as wireless infrastructure, broadband, and instrumentation.

Key Features:

  • Frequency Range: The ADRF6807ACPZ-R7 boasts a wide frequency range, with an RF/LO frequency from 50 MHz to 2200 MHz, making it suitable for various communication standards.
  • Integrated Fractional-N PLL Synthesizer: Equipped with a fractional-N phase-locked loop (PLL) synthesizer with VCO, this device ensures precise local oscillator (LO) frequency generation, which is critical for accurate signal demodulation.
  • High Linearity: With an input IP3 of 25.3 dBm, this mixer maintains signal integrity even at high input power levels, minimizing distortion and improving overall system performance.
  • Low Noise Figure: The ADRF6807ACPZ-R7 is designed to have a low noise figure of 11.9 dB, ensuring that the signal-to-noise ratio is preserved for clear and reliable signal processing.
  • Programmable Charge Pump Currents: This feature allows for customization of the PLL loop filter to optimize performance for specific applications.

Integration and Packaging:

The ADRF6807ACPZ-R7 is housed in a compact 40-lead LFCSP (lead-frame chip-scale package) that measures just 6x6 mm, making it an excellent choice for space-constrained applications. Its high level of integration includes an active mixer, local oscillator, voltage-controlled oscillator (VCO), and a programmable loop filter, which significantly reduces the external component count and simplifies the design process.

Application Versatility:

Its robust performance and flexible design make the ADRF6807ACPZ-R7 an ideal solution for a multitude of RF applications. Whether it's used in wireless infrastructure such as cellular base stations, point-to-point radios, or in precision RF instrumentation, this mixer provides designers with a high level of functionality and reliability.

With the ADRF6807ACPZ-R7, Analog Devices Inc. continues its tradition of delivering products that push the boundaries of performance, integration, and convenience for RF system designers around the globe.
