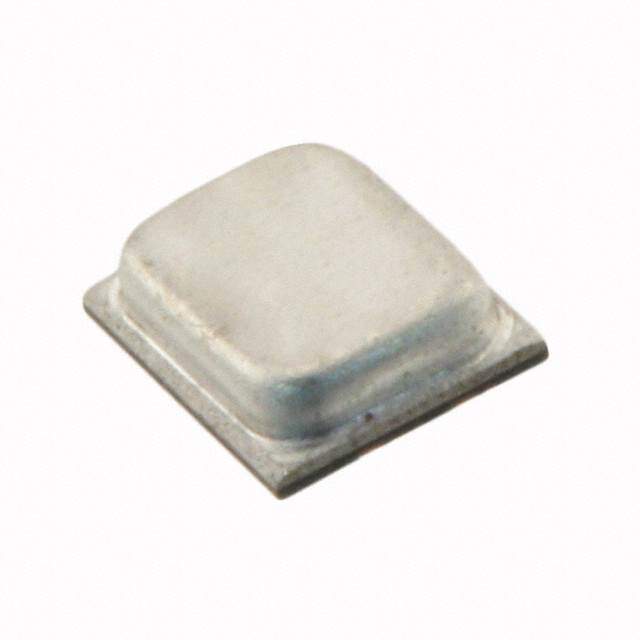

ADMP504ACEZ-RL7 Ultra-Low Noise Microphone with Bottom Port and Analog Output

The ADMP504ACEZ-RL7 is a high-performance, low noise, analog output bottom-ported omnidirectional MEMS microphone from Analog Devices Inc., a leader in high-performance signal processing solutions. This microphone is designed for applications that demand studio-quality audio input, making it an ideal choice for a wide range of applications, including smartphones, tablets, smart home devices, and industrial applications where clear audio capture is essential.

Key Features

• Ultra-Low Noise Performance: The ADMP504ACEZ-RL7 boasts an exceptionally low noise floor, enabling it to capture high-fidelity audio signals without unwanted background noise.
• High Sensitivity: With its high sensitivity, this microphone can detect very soft sounds, ensuring that even the quietest audio is captured with clarity.
• Extended Frequency Response: The microphone offers a wide frequency response range, making it capable of recording a broad spectrum of sounds, from the deepest bass to the highest treble.
• Omnidirectional Pickup Pattern: The omnidirectional pickup pattern provides uniform sensitivity around the microphone, allowing for consistent audio capture from all directions.
• Stable Performance: The ADMP504ACEZ-RL7 is designed to perform reliably across a wide range of environmental conditions, ensuring stable operation.
• Compact and Low Profile: Its small form factor and bottom port design make it easy to integrate into space-constrained designs without compromising audio quality.

Applications

• Mobile Devices
• Smart Home Systems
• Teleconferencing Equipment
• Security and Surveillance Systems
• Industrial and Medical Equipment

The ADMP504ACEZ-RL7 is supplied in a compact, surface-mount package that is reflow-solder compatible with no sensitivity degradation. Its robust construction and high-quality performance make it a top choice for designers looking to incorporate a superior audio solution into their products. The Analog Devices Inc. brand ensures that you are getting a product that is backed by years of engineering expertise and a commitment to quality.

For more detailed specifications and application guidance, customers are encouraged to review the datasheet and consult with Analog Devices Inc.'s technical support for optimal integration into their projects.
