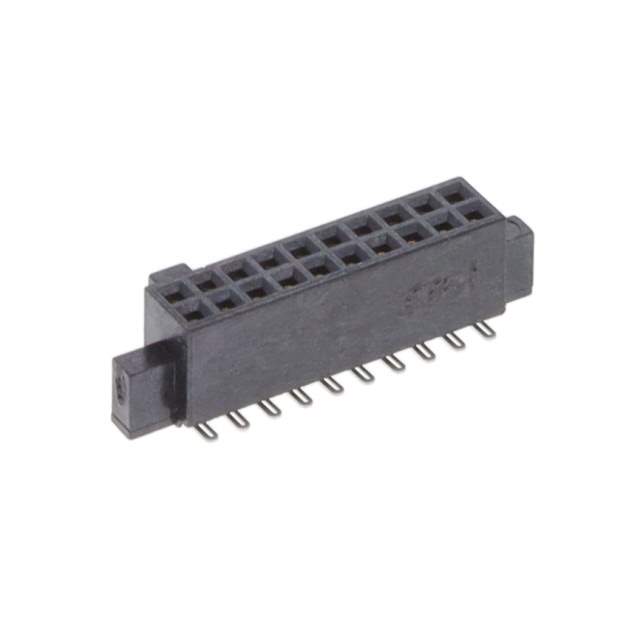

SFC-110-T2-L-D-K-TR

Name: SFC-110-T2-L-D-K-TR
Brand: Samtec Inc.
SKU: 1287937
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFC-110-T2-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFC-110-T2-L-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFC
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	3.1A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFC-110
Other Names	612-SFC-110-T2-L-D-K-TR,SFC-110-T2-L-D-K-TR,SFC-110-T2-L-D-K-FR,612-SFC-110-T2-L-D-K-TRCT,612-SFC-110-T2-L-D-K-TRDKR
Standard Package	725
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287937-SFC-110-T2-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SFC-110-T2-L-D-K-TR CAD Model

Alternative Products

Description

The SFC-110-T2-L-D-K-TR is a rectangular connector component from Samtec Inc.

Positions: 20
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Pitch-Mating: 0.050 inches (1.27mm)
Row Spacing-Mating: 0.050 inches (1.27mm)
Voltage Rating: 350VAC
Current Rating: 3.1Amps per contact
Contact Finish-Mating: Gold
Contact Finish-Thickness-Mating: 10.0µin (0.25µm)
Fastening Type: Push-Pull
Applications: Board to Board or Cable
Package: Tape and Reel
Standard Package: 725
