ADM8845ACPZ-REEL7 - High-Efficiency Charge Pump LED Driver

The ADM8845ACPZ-REEL7, manufactured by Analog Devices Inc., is a highly efficient, charge pump-based, constant current LED driver designed to drive up to six LEDs in series, providing a consistent and stable brightness for each LED. This component is an ideal solution for portable battery-powered devices where power efficiency and minimal space occupation are critical.

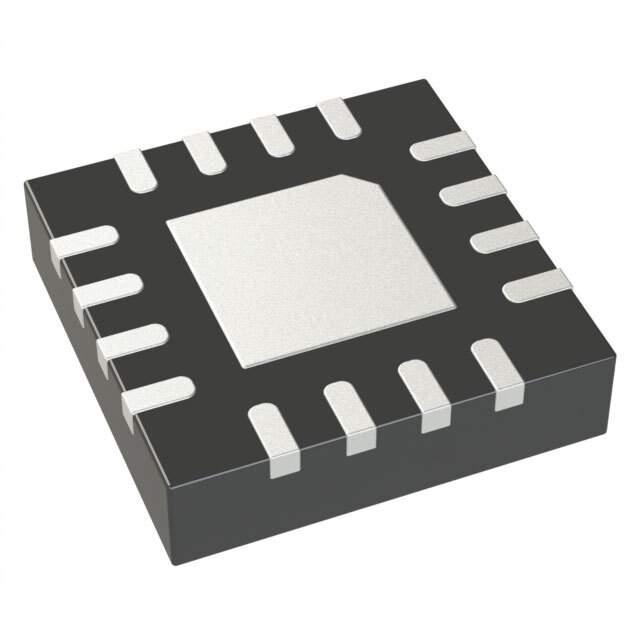

This LED driver comes in a compact 3x3 mm 16-lead LFCSP (Lead Frame Chip Scale Package) which is designed to optimize board space in space-constrained applications. It is part of a tape and reel package, denoted by the suffix 'REEL7', making it suitable for automated pick-and-place manufacturing processes, ensuring efficiency in high-volume production.

The ADM8845ACPZ-REEL7 operates on an input voltage range from 2.7V to 5.5V, making it versatile for various power supply configurations. This flexibility allows the device to be utilized in a wide range of products, from small handheld devices to larger, more power-intensive applications. The output current is programmable via an external resistor, providing design flexibility and the ability to fine-tune the brightness levels for specific requirements.

One of the key features of this LED driver is its high efficiency, which is achieved through a fractional charge pump that provides either 1x, 1.5x, or 2x gain, automatically selected based on the LED forward voltage requirements relative to the input voltage. This ensures optimal power usage and extends battery life in portable applications. Furthermore, the ADM8845ACPZ-REEL7 incorporates thermal shutdown and over-current protection, enhancing the safety and reliability of the end product.

Applications for the ADM8845ACPZ-REEL7 include backlighting for LCD displays in mobile phones, digital cameras, and portable media players, as well as LED lighting in personal navigation devices, and other handheld electronics. Its high efficiency and small form factor make it an excellent choice for designers looking to enhance the visual performance of their products while maintaining energy efficiency and compactness.

In summary, the ADM8845ACPZ-REEL7 from Analog Devices Inc. is a versatile, efficient, and compact LED driver solution that meets the demands of modern portable electronic devices.
