PS2801C-4-F3-A/M Renesas Electronics
Same model may have multiple batches, images only for reference.

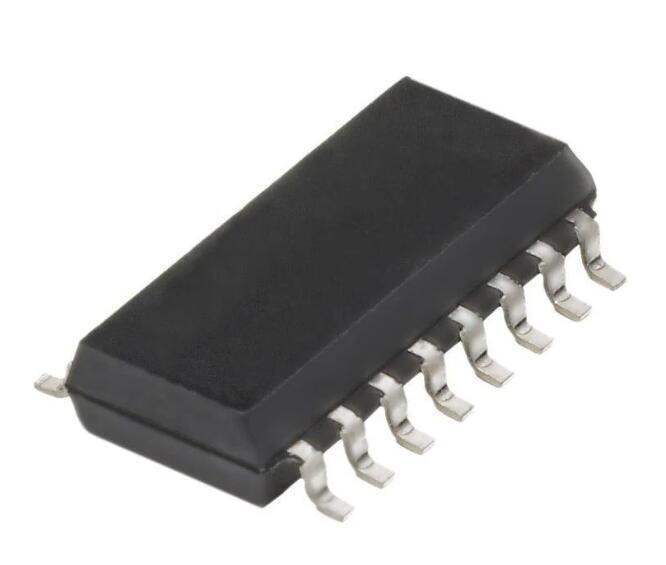

PS2801C-4-F3-A/M

Part No PS2801C-4-F3-A/M
Manufacturer Renesas Electronics America
Catalog Optocouplers/Photocouplers
Description Transistor Output Optocouplers OPTOCOUPLER 16-PIN SSOP
Datasheet
PS2801C-4-F3-A/M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics
Category Transistor Output Optocouplers
Mounting Style SMD/SMT
Package / Case SSOP-16
Number of Channels 4 Channel
Isolation Voltage 2500 Vrms
Output Type NPN Phototransistor
Current Transfer Ratio - Min 100 %
Current Transfer Ratio - Max 400 %
If - Forward Current 30 mA
Vf - Forward Voltage 1.2 V
Ultra Librarian 3D Model Ultra Librarian PS2801C-4-F3-A/M CAD Model

Description

These products are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost performance. This package has shield effect to cut off ambient light.
