The ADG509ATQ is a high-performance analog multiplexer from Analog Devices Inc., a leader in the semiconductor industry. This device is designed to offer exceptional signal accuracy and integrity, making it an excellent choice for precision data acquisition systems, test equipment, and other applications requiring high-quality analog switching.

Key Features

• Multiple Switch Configurations: The ADG509ATQ offers four differential channels or eight single-ended channels, providing flexibility for various signal routing requirements.
• Low On Resistance: With a typical on resistance of just 35 ohms, this multiplexer ensures minimal signal attenuation and distortion, preserving signal fidelity.
• Low Crosstalk and Off Isolation: Designed to minimize interference between channels, the ADG509ATQ ensures high signal integrity and reduces noise in multi-channel systems.
• Single or Dual Supply Operation: It can operate from a single 15V supply or dual ±15V supplies, accommodating a range of power environments.
• TTL/CMOS Compatible: The control logic is compatible with both TTL and CMOS levels, allowing for easy integration with a variety of digital systems.

Applications

The ADG509ATQ is suitable for a wide range of applications, including:

• Data acquisition systems
• Test equipment
• Process control systems
• Relay replacement
• Audio and video routing

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the ADG509ATQ is no exception. This device is built to meet the stringent requirements of industrial and commercial applications, ensuring long-term performance and stability.

Ordering Information

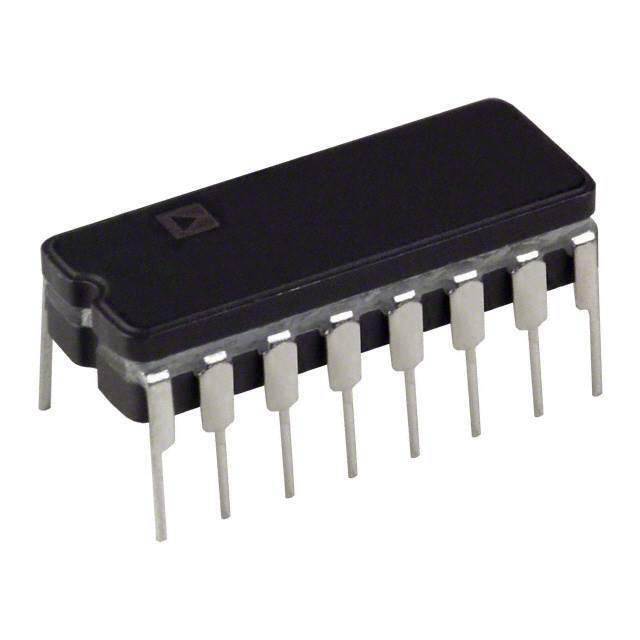

The ADG509ATQ is available in a 16-lead CERDIP (Q) package, ensuring robustness and ease of mounting on printed circuit boards. For detailed specifications, pricing, and ordering information, please visit the Analog Devices Inc. website or contact an authorized distributor.
