The ADAQ7980BCCZ is a state-of-the-art 16-bit, 1 MSPS, μModule® Data Acquisition System (DAS) designed by Analog Devices Inc. This compact and highly integrated solution is part of the ADAQ series, which is known for combining high-performance analog-to-digital conversion with additional functionality to provide a complete, ready-to-use data acquisition system.

Key Features

• Precision ADC: At its core, the ADAQ7980BCCZ features a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) that delivers a sampling rate of up to 1 MSPS, ensuring high-speed data acquisition with excellent accuracy.
• Integrated Components: This DAS includes a low noise, high bandwidth ADC driver, a stable reference buffer, and a high-speed serial interface. This level of integration reduces the design complexity and the number of external components required, thereby simplifying the design-in process for engineers.
• Power Efficiency: Designed for low power consumption, the ADAQ7980BCCZ is ideal for battery-powered applications and portable devices, providing energy-efficient operation without sacrificing performance.

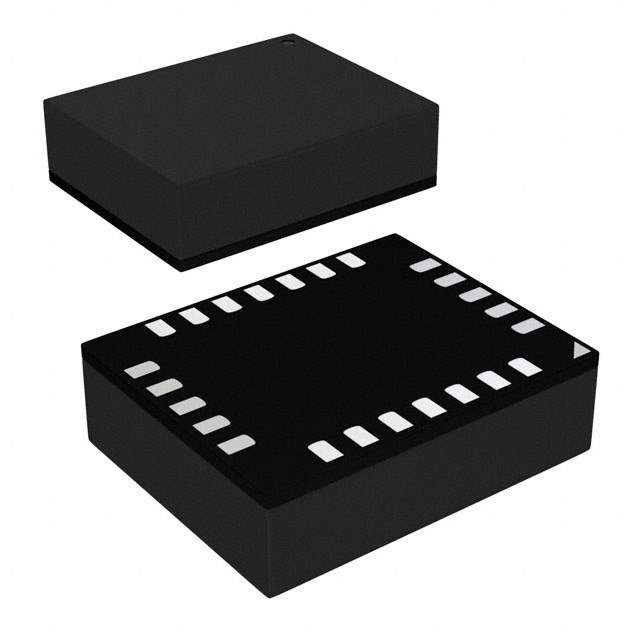

• Compact μModule Package: Encased in a compact, 32-lead LGA package, the ADAQ7980BCCZ saves valuable board space and is suitable for space-constrained applications.
• Easy Implementation: The device features a user-friendly SPI-compatible serial interface, making it easy to connect with microcontrollers and digital signal processors.

Applications

The ADAQ7980BCCZ is versatile and can be employed in a wide range of applications. It is particularly well-suited for:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Medical Instruments
• Battery-Powered Instruments
• Communication Systems

Additional Information

For engineers and designers looking to incorporate the ADAQ7980BCCZ into their systems, detailed technical specifications, application notes, and support resources are available on the Analog Devices website. Analog Devices provides robust support to ensure a smooth integration of the ADAQ7980BCCZ into your next high-performance data acquisition project.
