AD9838BCPZ-RL: A Precision Waveform Generator from Analog Devices Inc.

The AD9838BCPZ-RL is a highly integrated, low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Manufactured by Analog Devices Inc., a leader in high-performance semiconductors, this device is part of their Direct Digital Synthesis (DDS) portfolio and is designed for applications requiring efficient, high-resolution frequency and phase programmability.

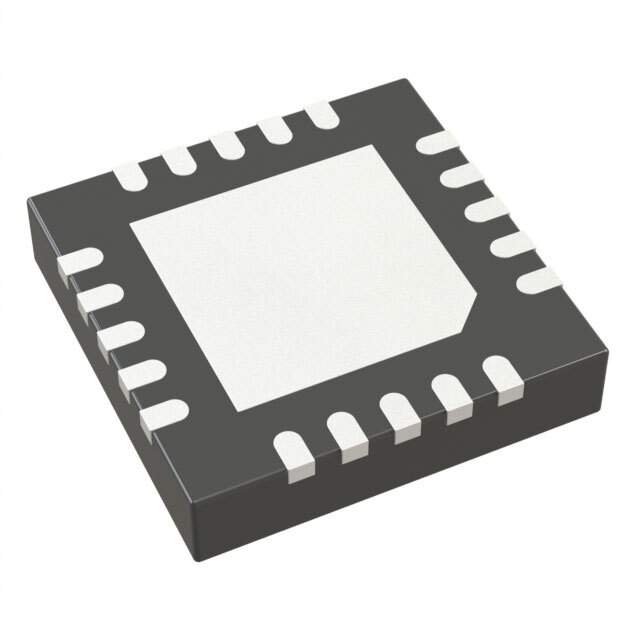

This precision waveform generator comes in a compact LFCSP (Lead Frame Chip Scale Package) that is both space-saving and suitable for advanced PCB technologies. It operates on a single 2.3 V to 5.5 V power supply, making it an ideal choice for battery-powered instruments and portable devices.

Key Features of the AD9838BCPZ-RL:

• Frequency and Phase Programmability: The AD9838BCPZ-RL's high-resolution DDS core allows for fine frequency and phase tuning, which is essential for applications such as signal generation, clock recovery, and wireless communications.
• Low Power Consumption: Its power-saving features include a power-down function that reduces the current consumption to 20 uA, making it suitable for power-sensitive applications.
• Waveform Generation: It can generate sine, triangular, and square waves, giving designers flexibility in signal creation without the need for external waveform shaping circuits.
• Programmable via Serial Interface: The device can be controlled through a 3-wire serial interface, which simplifies integration into digital systems and allows for easy programming of the frequency and phase registers.
• On-Chip Comparator: The inclusion of an on-chip comparator enables the AD9838BCPZ-RL to produce a square wave output for clock generation purposes.

Applications:

The AD9838BCPZ-RL is versatile and can be used in a variety of applications, including:

• Portable Instrumentation
• Function Generators
• Liquid & Gas Flow Measurement
• Sensor Conditioning
• Wireless Infrastructure

With its combination of features, the AD9838BCPZ-RL from Analog Devices Inc. is a sophisticated yet easy-to-use waveform generator that provides designers with a compact, efficient, and precise solution for a wide range of applications.
