Introducing the AD9272BSVZ-40 by Analog Devices Inc.

The AD9272BSVZ-40 is a highly integrated, octal-channel, ultrasound receiver from Analog Devices Inc., specifically designed to cater to the demanding requirements of medical ultrasound applications. This innovative component is engineered to deliver precision and performance, making it an essential building block for advanced diagnostic imaging systems.

Key Features:

• Eight Complete Receiver Channels: The AD9272BSVZ-40 features eight channels, each with a low-noise amplifier (LNA), a variable gain amplifier (VGA), an anti-aliasing filter (AAF), and a 14-bit, 40 MSPS analog-to-digital converter (ADC), providing a comprehensive solution for ultrasound signal acquisition.
• Integrated LNA: Each channel is equipped with a low-noise amplifier that offers excellent input noise performance, which is crucial for high-resolution imaging.
• Programmable Gain and Filters: The variable gain amplifier and anti-aliasing filter are programmable, allowing for optimal signal conditioning and flexibility to adapt to various transducer types and imaging modes.
• Digital I/Q Demodulation: With an integrated digital I/Q demodulator, the AD9272BSVZ-40 can efficiently process complex signals, reducing the system's digital processing requirements.
• High-Speed ADC: The 14-bit ADC operates at 40 MSPS, ensuring high-fidelity digitization of the received ultrasound signals for precise imaging.

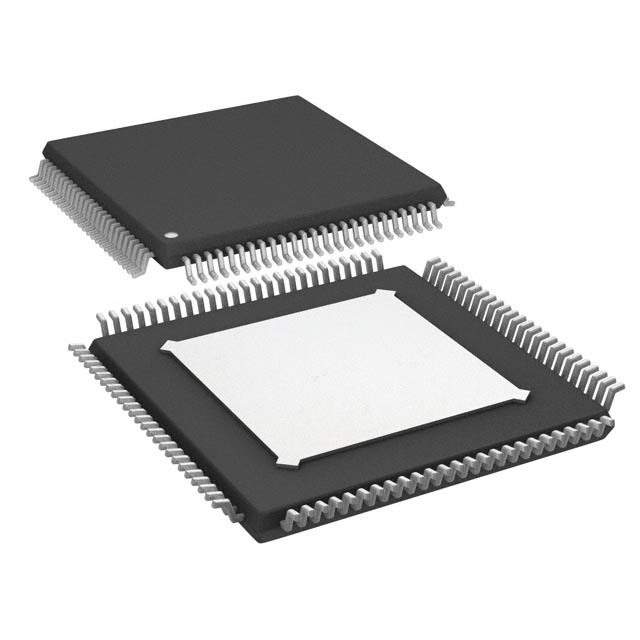

• Compact Package: Housed in a space-saving 100-lead LQFP package, the AD9272BSVZ-40 is designed to fit into compact ultrasound systems without compromising performance.

Applications:

The AD9272BSVZ-40 is ideally suited for a range of medical imaging applications, including:

• High-Performance Portable and Stationary Ultrasound Systems
• Cardiac
• Vascular
• Point-of-Care Ultrasound Devices

With its high integration level and advanced features, the AD9272BSVZ-40 from Analog Devices Inc. represents a significant advancement in ultrasound receiver technology. It enables system designers to create sophisticated ultrasound imaging systems that offer high resolution, exceptional image quality, and enhanced diagnostic capabilities, all while maintaining a compact form factor.

For more detailed specifications and application support, visit Analog Devices Inc.'s official website or contact their technical support team.
