Analog Devices Inc. AD9246BCPZRL7-125: A High-Performance 14-Bit ADC

The AD9246BCPZRL7-125 is a cutting-edge analog-to-digital converter (ADC) produced by Analog Devices Inc., a leader in high-performance signal processing technology. This 14-bit ADC operates at a 125 MSPS (mega samples per second) conversion rate, delivering high-speed data acquisition with exceptional accuracy and noise performance. It is designed for applications that require precise signal conversion, such as medical imaging, communications, and instrumentation.

Key Features

• Resolution: 14-Bit ADC offers fine granularity for a wide range of input signals, ensuring detailed and accurate digital representation.
• Sampling Rate: With a maximum sampling rate of 125 MSPS, the AD9246BCPZRL7-125 is capable of converting high-frequency analog signals into digital data without sacrificing detail.
• Low Power Consumption: Optimized for power-sensitive applications, this ADC maintains high performance while minimizing power usage, making it ideal for portable and remote sensing devices.
• Integrated Features: The device includes an on-chip voltage reference and sample-and-hold circuit, simplifying system design and reducing external component requirements.
• Differential Inputs: Differential input capability enhances common-mode noise rejection and improves signal integrity for challenging electrical environments.
• Flexible Interface: The digital interface is user-friendly and supports various modes, including DDR LVDS (Double Data Rate Low-Voltage Differential Signaling) and CMOS outputs, providing versatility in system integration.

Applications

Due to its high resolution and speed, the AD9246BCPZRL7-125 is suitable for a diverse range of applications, including:

• Wireless and wired broadband communications
• Radar and satellite antenna array processing
• Test and measurement equipment
• Medical imaging systems such as MRI and CT scanners
• Professional video and digital camera systems
• High-speed data acquisition systems

Package and Quality

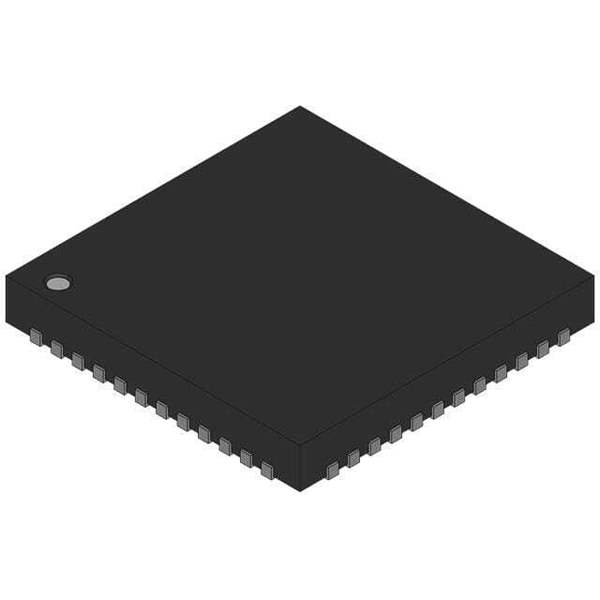

The AD9246BCPZRL7-125 comes in a compact LFCSP (Lead Frame Chip Scale Package) that is designed for space-constrained applications. Analog Devices Inc. is committed to maintaining high-quality standards, and this product is no exception. It is built to meet rigorous performance criteria and to ensure reliability in demanding environments.

Integrating the AD9246BCPZRL7-125 into your design will provide a seamless bridge between the analog and digital worlds, enabling advanced systems to capture and process complex signals with high fidelity and speed.
