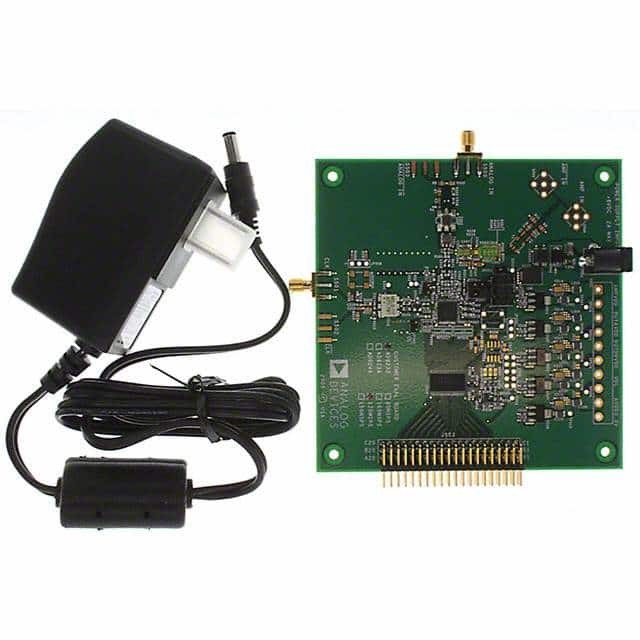

AD9233-125EBZ - High-Speed ADC Evaluation Board from Analog Devices Inc.

The AD9233-125EBZ is a cutting-edge evaluation board designed to showcase the performance of the AD9233 Analog-to-Digital Converter (ADC) chip from Analog Devices Inc. This evaluation board facilitates the testing and development of systems that require high-speed data acquisition and signal processing.

Key Features:

• High-Speed ADC: The AD9233 is a 12-bit ADC with a sampling rate of up to 125MSPS (Mega Samples Per Second), providing high-speed data conversion with excellent dynamic performance.
• Input Flexibility: The evaluation board supports a wide range of input frequencies and amplitudes, making it versatile for various applications.
• Reference Design: Users can leverage the design as a reference to streamline their own system development, reducing time-to-market.
• Easy-to-Use: The AD9233-125EBZ is user-friendly and comes with comprehensive documentation, making it accessible for both beginners and experienced engineers.
• Software Support: The board is supported by a suite of software tools that enable users to capture data, perform analysis, and adjust settings for optimal performance.

Applications:

The AD9233-125EBZ is ideal for a variety of high-speed signal processing applications, including:

• Medical Imaging Systems
• Communication Systems
• Radar and Satellite Receivers
• Test and Measurement Equipment

Technical Specifications:

The AD9233-125EBZ evaluation board is an excellent choice for engineers looking to evaluate the AD9233 ADC or to develop high-speed data acquisition systems with reliable and accurate performance.
