AD8345ARE-REEL7

Part No AD8345ARE-REEL7
Manufacturer Analog Devices Inc.
Catalog RF Modulators
Description 250 MHz.1000 MHz Quadrature Modulator
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Function Modulator
LO Frequency 140MHz ~ 1GHz
RF Frequency 140MHz ~ 1GHz
P1dB 2.5dBm
Noise Floor -155dBm/Hz
Output Power 2dBm
Operating Supply Current 78mA
Operating Supply Voltage 2.7 V ~ 5.5 V
Test Frequency 800MHz

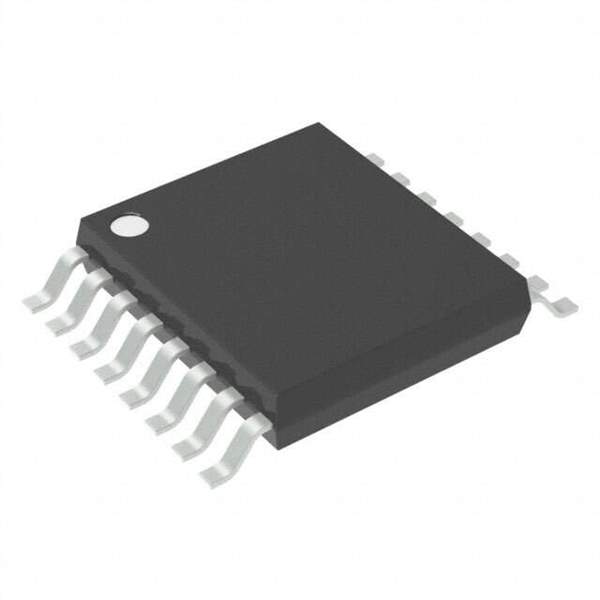

Package 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
RoHS State Request Verification
Win Source Part Number 1138483-AD8345ARE-REEL7
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name AD8345
Introduction Date July 01, 2001
ECCN 5A991.b
Country of Origin Philippines
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AD8345ARE-REEL7 CAD Model

Description

Product Overview: AD8345ARE-REEL7

The AD8345ARE-REEL7 is a high-performance, quadrature modulator designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs). This component is part of the REEL7 packaging series, indicating it is provided in a tape and reel format suitable for automated assembly processes.

Designed to operate within the 0.8 GHz to 2.5 GHz frequency range, the AD8345ARE-REEL7 is an ideal choice for a variety of applications that require efficient modulation of RF signals. It is commonly utilized in wireless communication systems, including GSM, CDMA, WCDMA, and other 3G and 4G cellular base stations, as well as in broadband wireless access systems, cable modem termination systems, and a range of other telecommunication devices.

The device integrates a high linearity I/Q modulator with a fractional-N PLL (Phase-Locked Loop) and VCO (Voltage-Controlled Oscillator), providing a complete solution for generating a high-quality, quadrature-modulated RF output. Its superior sideband suppression and carrier suppression characteristics ensure minimal signal distortion and high signal integrity.

Key features of the AD8345ARE-REEL7 include:

  • Integrated LO amplifier, eliminating the need for external components
  • High output IP3 (third-order intercept point) for excellent dynamic range
  • Single-ended RF output for simplified interfacing
  • 2.7 V to 5.5 V supply voltage range, supporting various system power requirements
  • Adjustable baseband gain for flexible signal level management
  • Power-down mode for power conservation in battery-powered devices

The AD8345ARE-REEL7 is supplied in a compact, surface-mountable package, making it a space-saving solution for modern electronic devices where board space is at a premium. Its robust design ensures reliable performance even in harsh environmental conditions, which is crucial for maintaining consistent communication quality.

In summary, the AD8345ARE-REEL7 from Analog Devices Inc. is a versatile, high-quality quadrature modulator that offers designers the performance and integration needed for advanced RF signal generation in a wide array of communication applications.
