The AD8349ARE from Analog Devices Inc. is a versatile and high-performance quadrature modulator that is designed for use in a wide array of communication systems. This device is capable of efficiently modulating RF signals in the frequency range of 800 MHz to 2.5 GHz, making it an ideal choice for applications in broadband wireless, infrastructure, and satellite communication systems.

Key Features

• Frequency Range: The AD8349ARE operates effectively over a broad frequency range from 800 MHz to 2.5 GHz, accommodating various communication standards and applications.
• High Linearity: It delivers excellent modulation accuracy and linearity, which is critical for maintaining signal integrity in communication systems.
• Integrated LO Amplifier: The device includes an integrated local oscillator (LO) amplifier, simplifying the design and reducing the need for external components.
• Single Supply Operation: Operating on a single 5 V supply, the AD8349ARE simplifies power management in system designs.
• Adjustable Output Power: It features an adjustable output power range, providing flexibility in controlling signal levels for various applications.

Applications

• Broadband wireless access systems
• Wireless local loop
• Point-to-point communication links
• Satellite communication systems
• Wireless infrastructure

Technical Specifications

The AD8349ARE offers a differential I/Q input range of 0.5 V peak to peak, and an output third-order intercept point (OIP3) of 26 dBm, ensuring robust performance in complex signal environments. The device also features a noise figure of 10.7 dB at 900 MHz, contributing to its overall efficiency in signal processing.

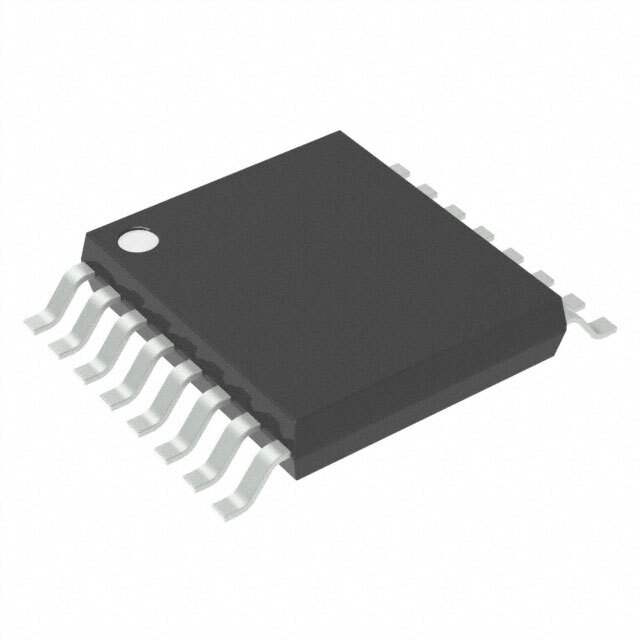

This quadrature modulator is housed in a compact, 16-lead TSSOP package, which allows for a space-saving footprint in hardware designs. The integration of a serial port interface enables easy programming and control, further enhancing its utility in advanced communication systems.

With its combination of high-performance characteristics and ease of integration, the AD8349ARE from Analog Devices Inc. represents a sophisticated solution for modern RF modulation requirements.
